Specifications
-
Product specifications for Mini 2 / No Dim / 2700K
BRAND

Arkoslight

TYPE

Ceiling

MATERIAL

Aluminium,

Polymethyl Methacrylate

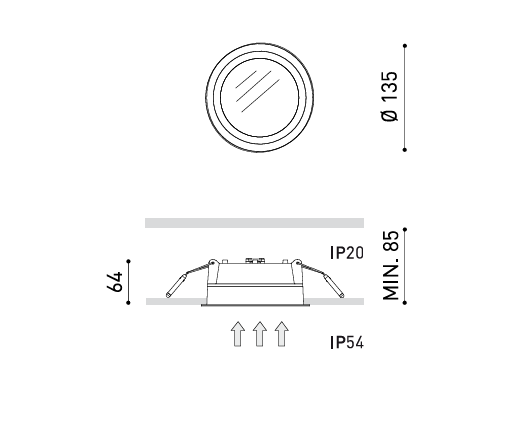

DIMENSIONS

Ø 8.5 cm x 6.4 cm x 13.5 cm

LIGHT TEMPERATURE

2700K; 3000K or 4000K

ELECTRICAL CHARACTERISTICS

(2) 7W (No Dim; Push; Dali) 500 mA
(3) 10W (No Dim; Push; Dali) 700 mA

PHOTOMETRIC DATA

LED L80B10 >60.000h
975 lm; 1050 lm or 1075 lm(2700K)
1275 lm; 1375 lm or 1400 lm(3000K)
1075 lm; 1400 lm (4000K)
CRI>90
Energy efficiency class G; D or E
IP43 / IP54

Arkoslight

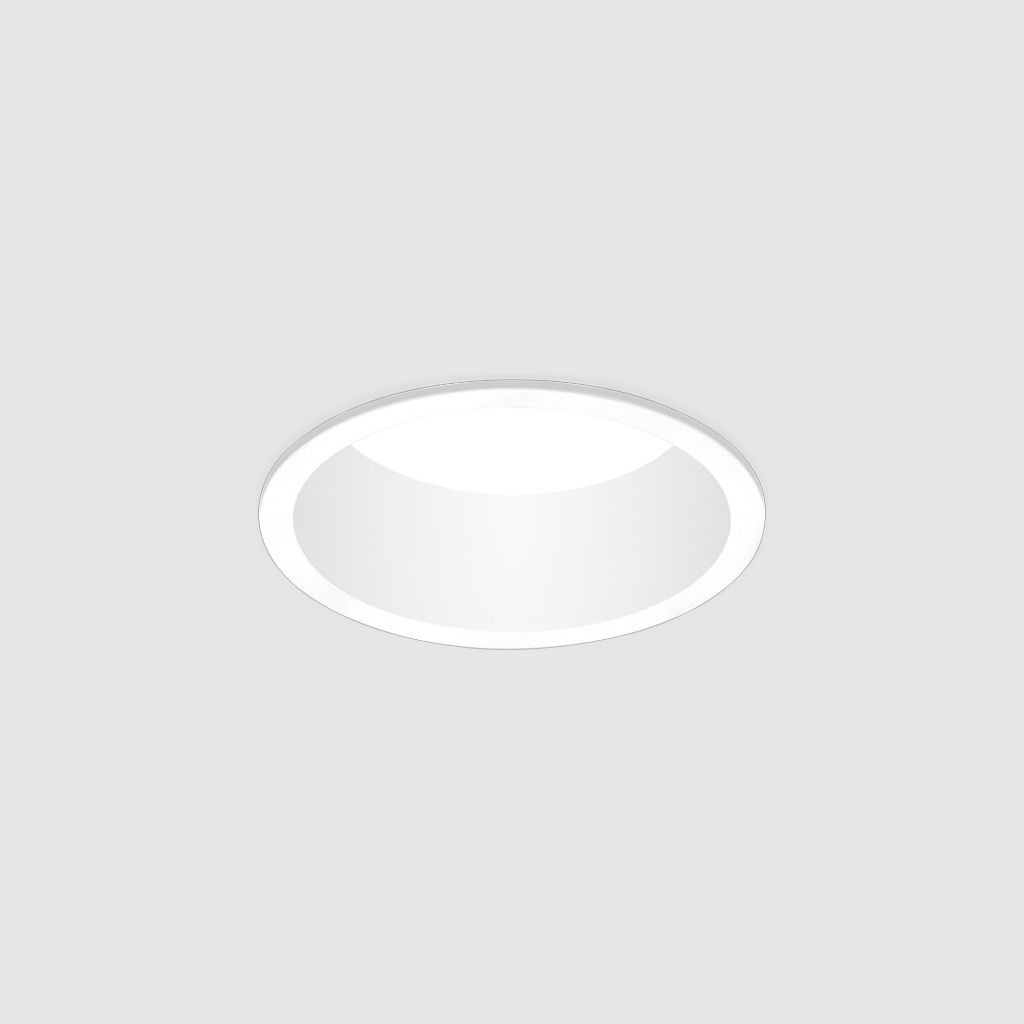

Deep is a family of LED downlights for general lighting functions that stands out for its attractive appearance, where the diffuser is distinctly recessed in relation to the level of the perimeter frame. With its different sizes, it adapts to each project’s requirements and adds a differentiating attribute.

Model: Mini
Version
Dimming Control
Light Temperature
Specifications
-
Product specifications for Mini 2 / No Dim / 2700K
BRAND

Arkoslight

TYPE

Ceiling

MATERIAL

Aluminium,

Polymethyl Methacrylate

DIMENSIONS

Ø 8.5 cm x 6.4 cm x 13.5 cm

LIGHT TEMPERATURE

2700K; 3000K or 4000K

ELECTRICAL CHARACTERISTICS

(2) 7W (No Dim; Push; Dali) 500 mA
(3) 10W (No Dim; Push; Dali) 700 mA

PHOTOMETRIC DATA

LED L80B10 >60.000h
975 lm; 1050 lm or 1075 lm(2700K)
1275 lm; 1375 lm or 1400 lm(3000K)
1075 lm; 1400 lm (4000K)
CRI>90
Energy efficiency class G; D or E
IP43 / IP54
