Specifications
-
Product specifications for Brushed Gold / 23° / 2700K w/ No Dim
BRAND

Arkoslight

TYPE

Ceiling

MATERIAL

Aluminium,

Acrylonitrile Butadiene Styrene,

Polycarbonate

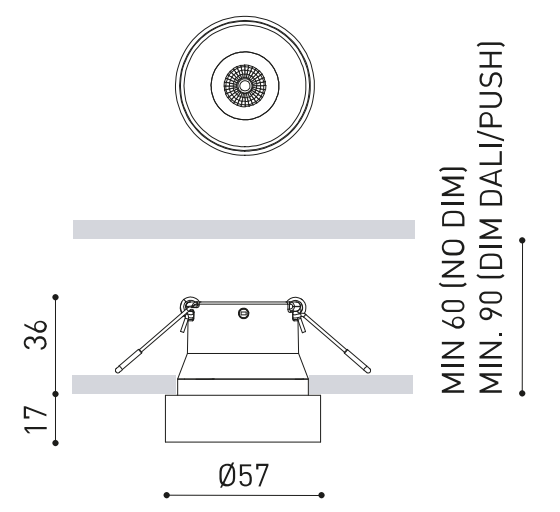

DIMENSIONS

Ø 5,7 cm x 5,3 cm x (No Dim, Min.) 6.0 cm
Ø 5,7 cm x 5,3 cm x (DALI/PUSH, Min.) 9.0 cm

LIGHT TEMPERATURE

2700K; 3000K; 3500K or 4000K

ELECTRICAL CHARACTERISTICS

6W - 500 mA
97 lm/W (2700K)
102 lm/W (3000K)
105 lm/W (3500K)
108 lm/W (4000K)

PHOTOMETRIC DATA

LED L80B10 >60.000h
Chromatic Stability: MacAdam Step 2
2700K: 580 lm
3000K: 610 lm
3500K: 630 lm
4000K: 650 lm
CRI>90
Dimming: No Dim, DALI, Phase Cut, Push
Energy Efficiency Class F
IP20

Arkoslight

Shot Light

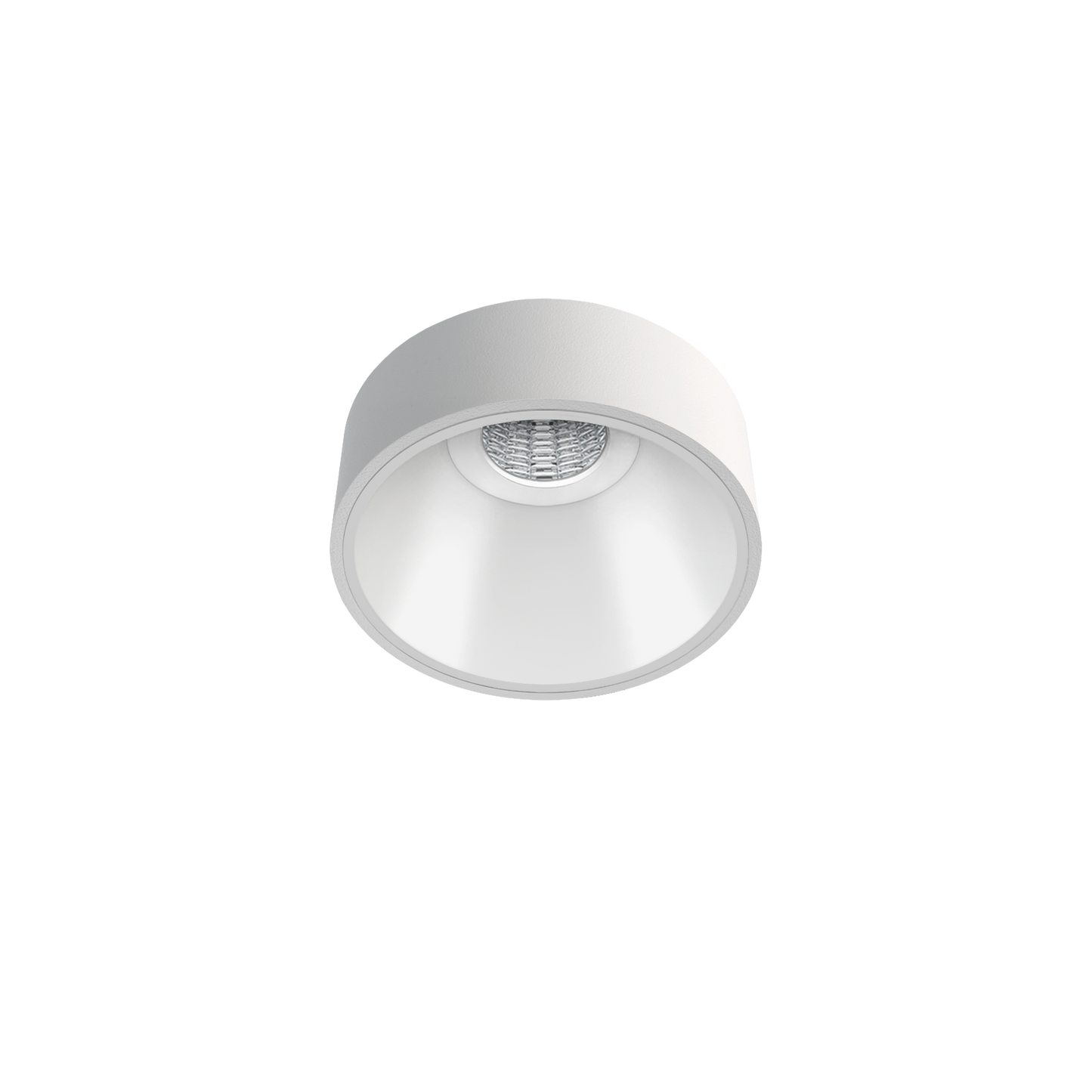

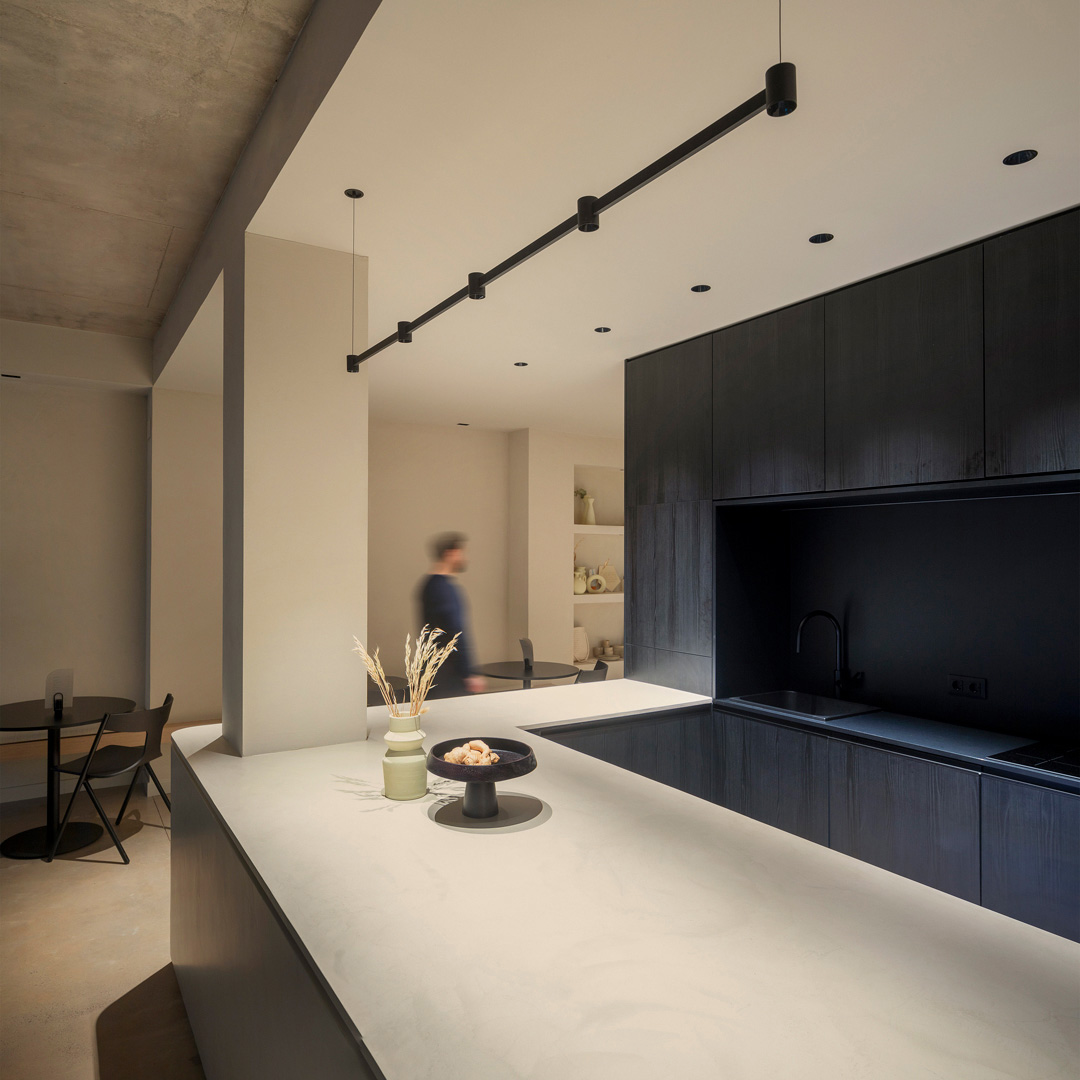

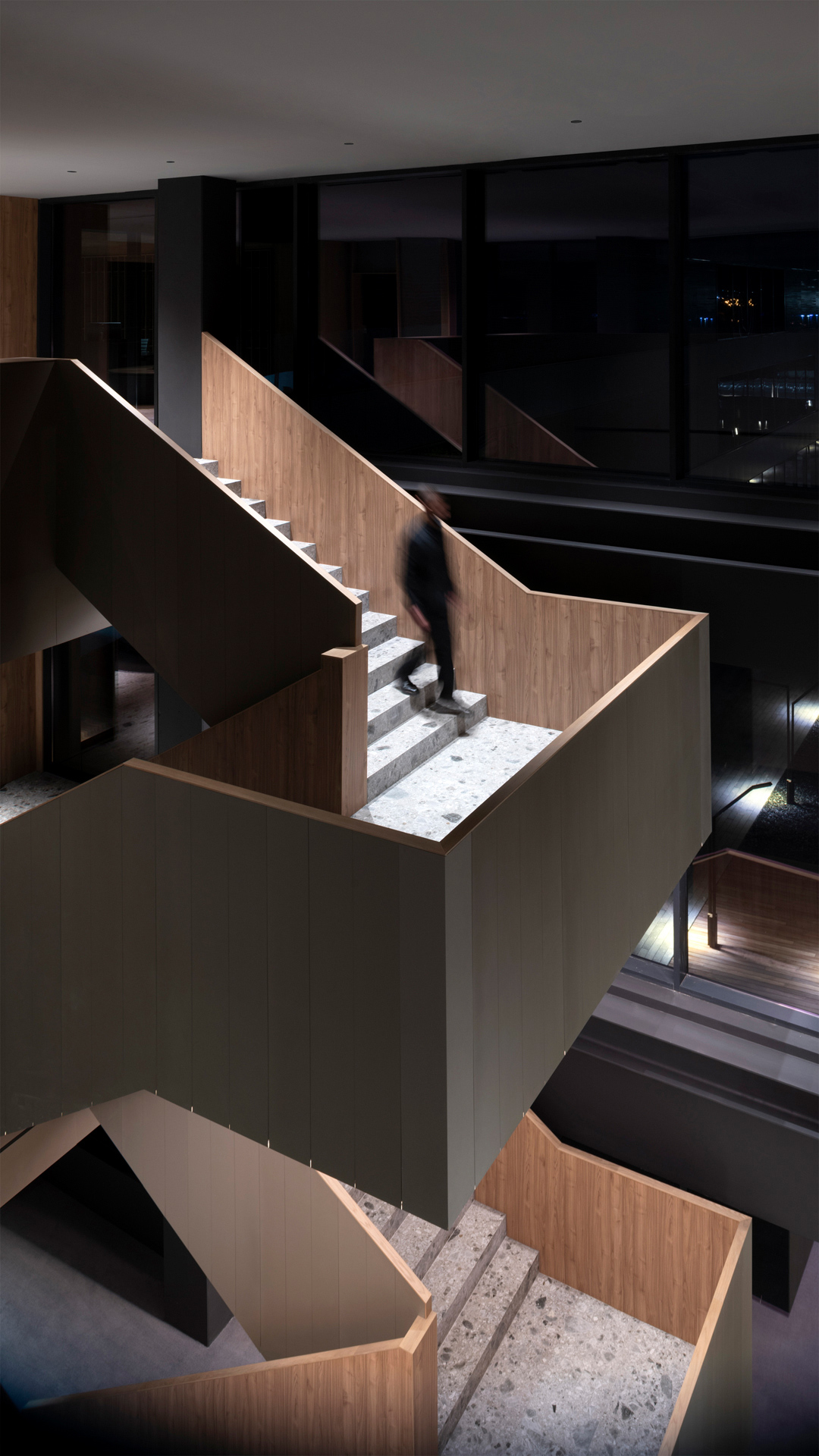

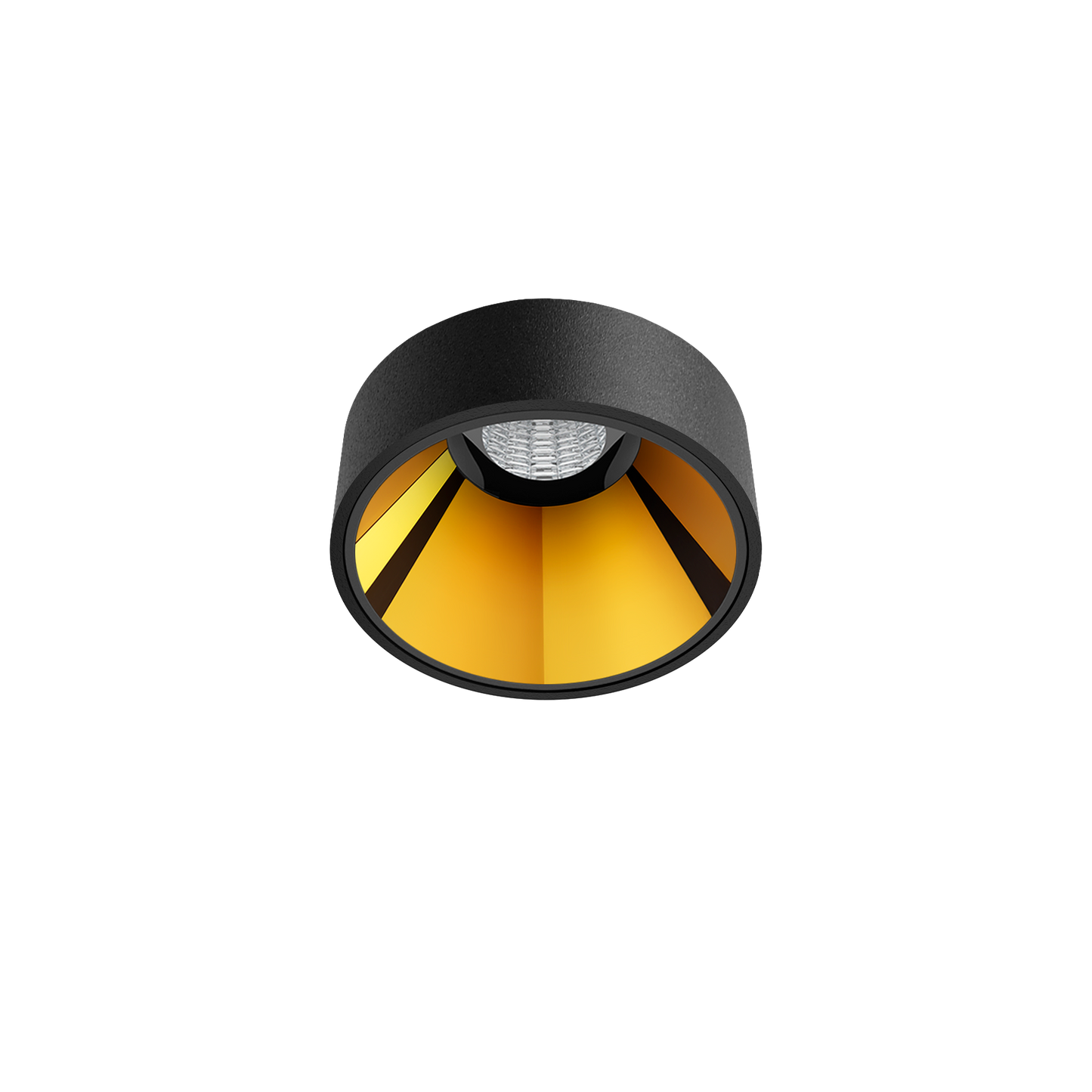

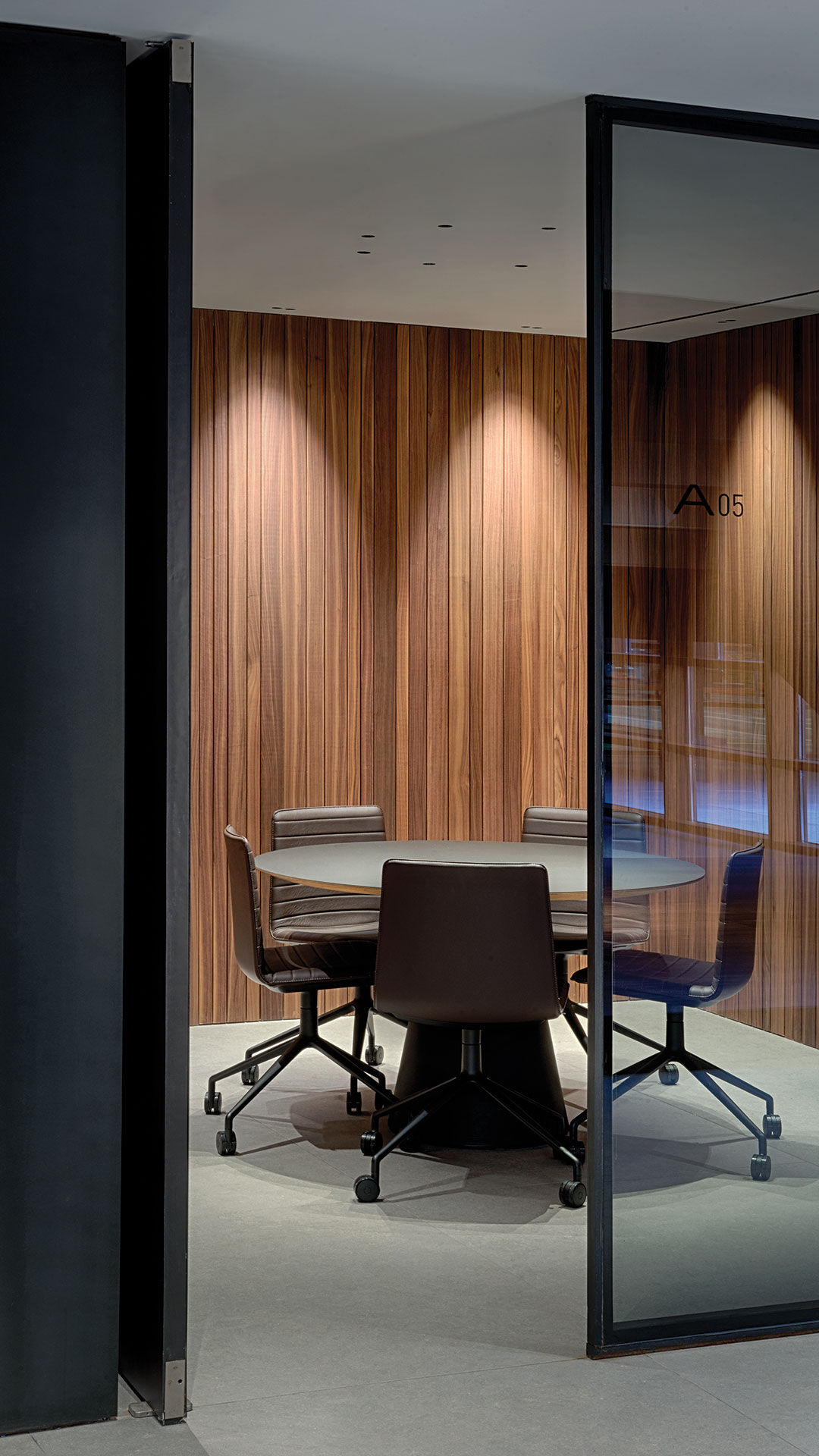

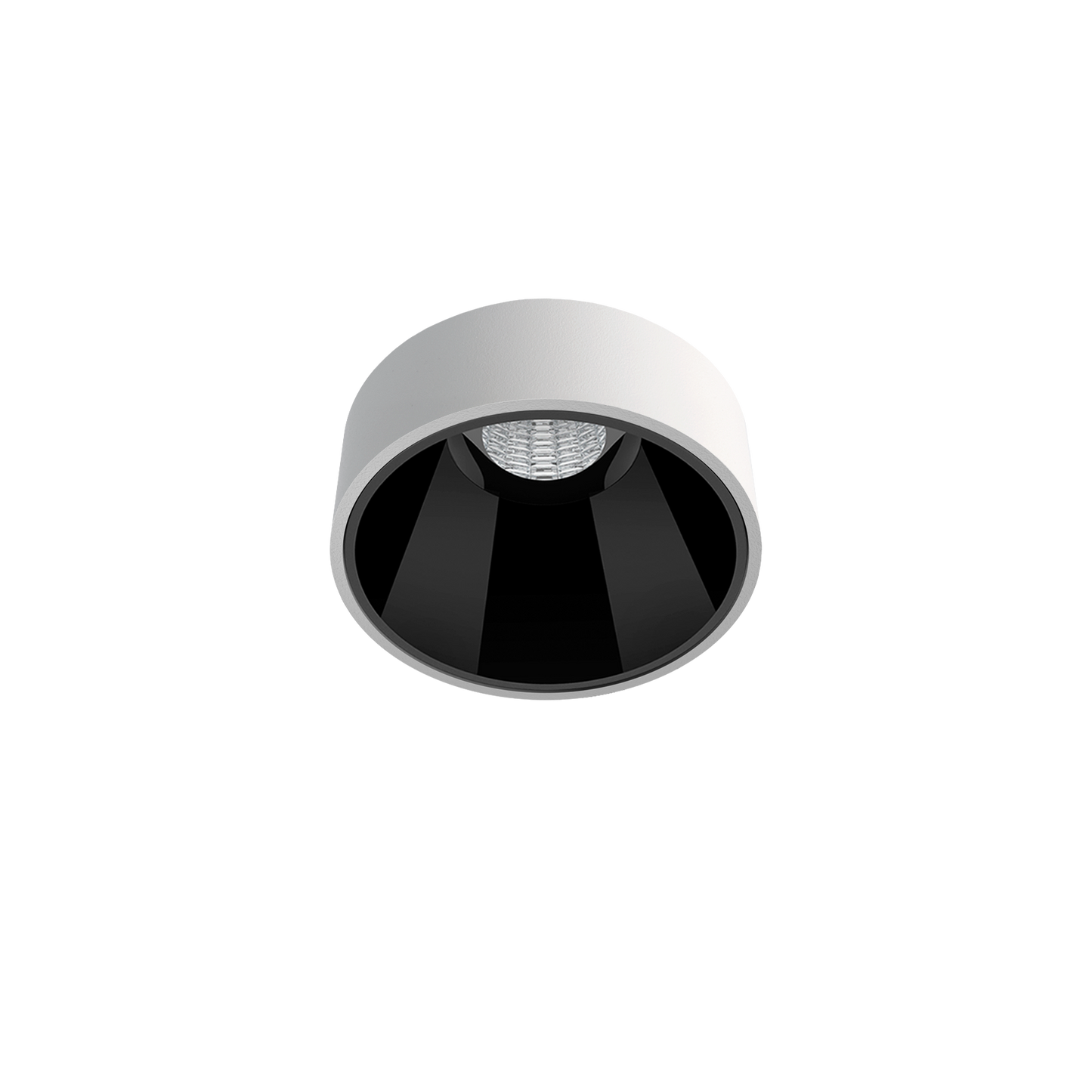

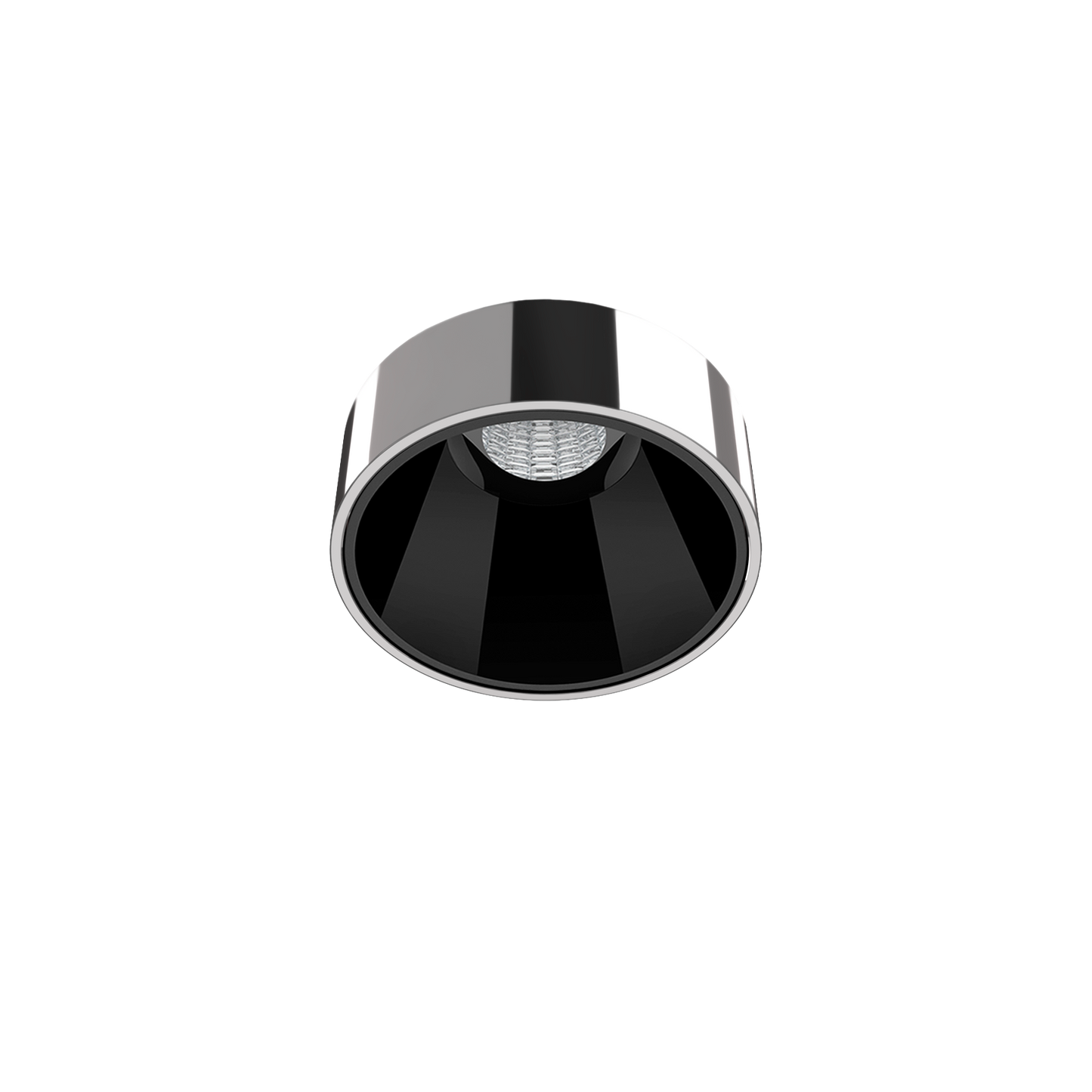

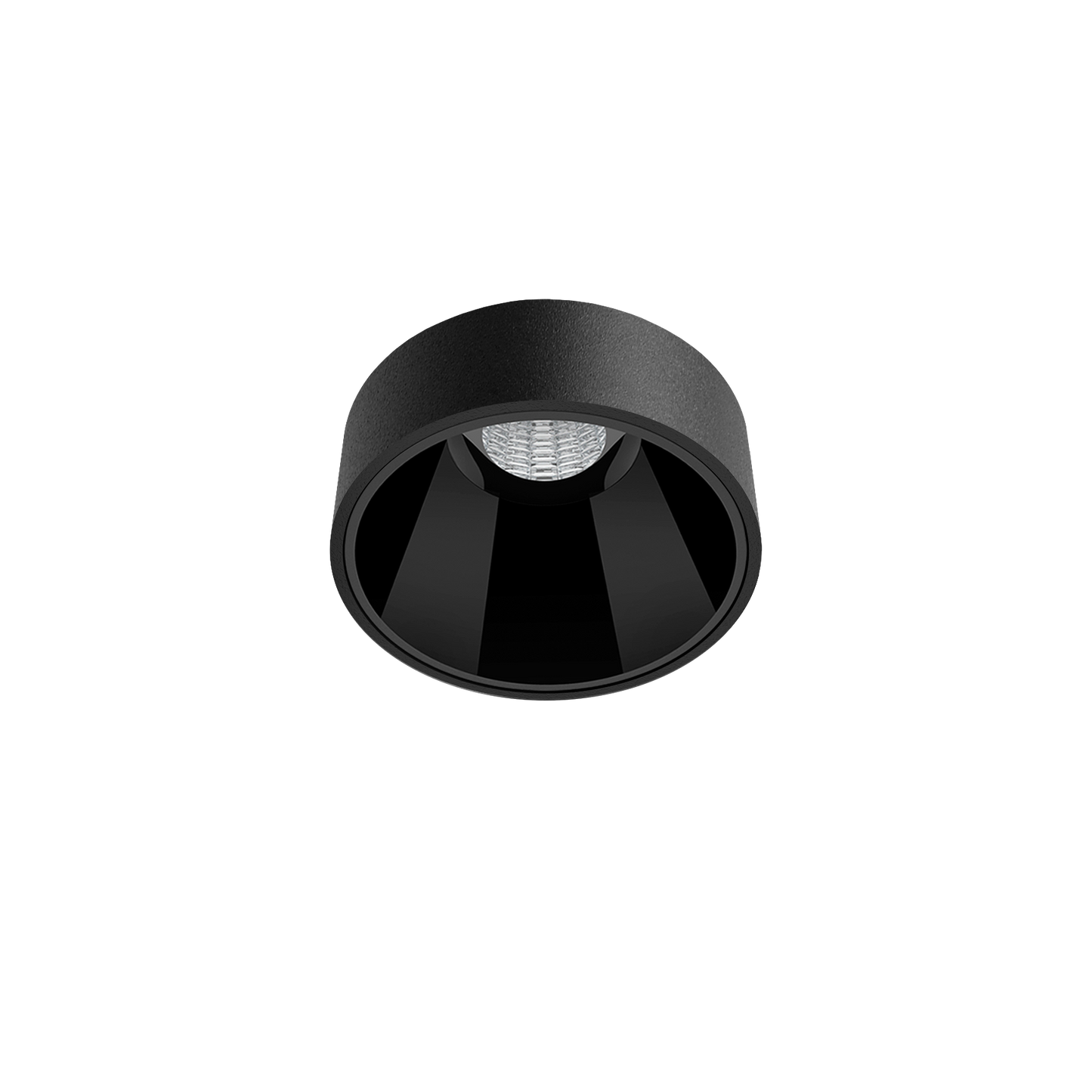

Shot Light - S Semi Recessed

A luminary conceived to be a small, discreet point of light in the ceiling that hides the illumination source from sight and aims to offer maximum visual comfort. In order to achieve this, it has an anti-glare screen and a specifically designed micro-reflector that generates a perfectly defined light beam.

Model: S Semi Recessed
Shot Light
Trimless
Small
S Trimless
S Semi Recessed
S Flex
Medium
M Trimless
M Asymmetric
M Asymmetric Trimless
Big

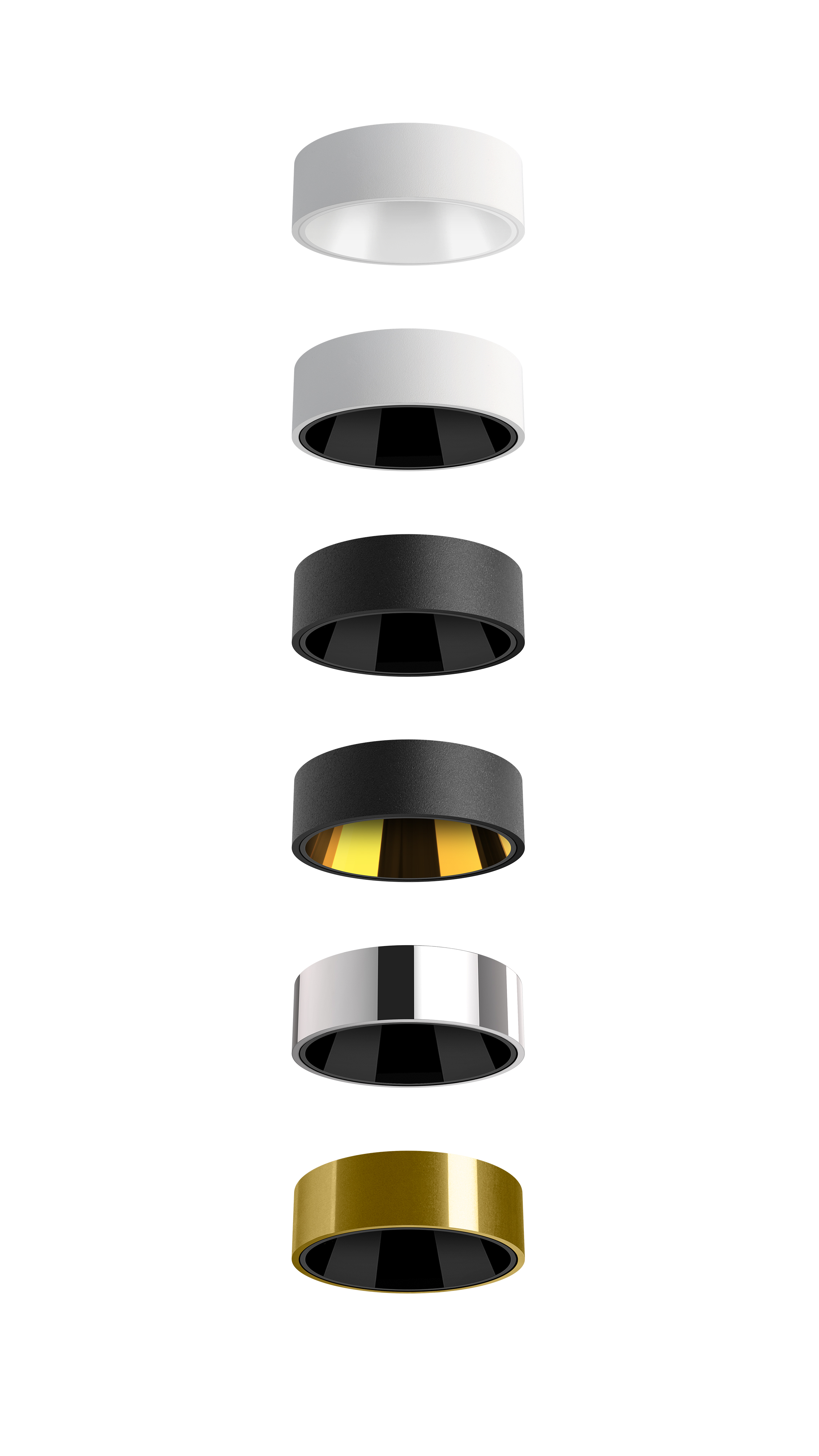

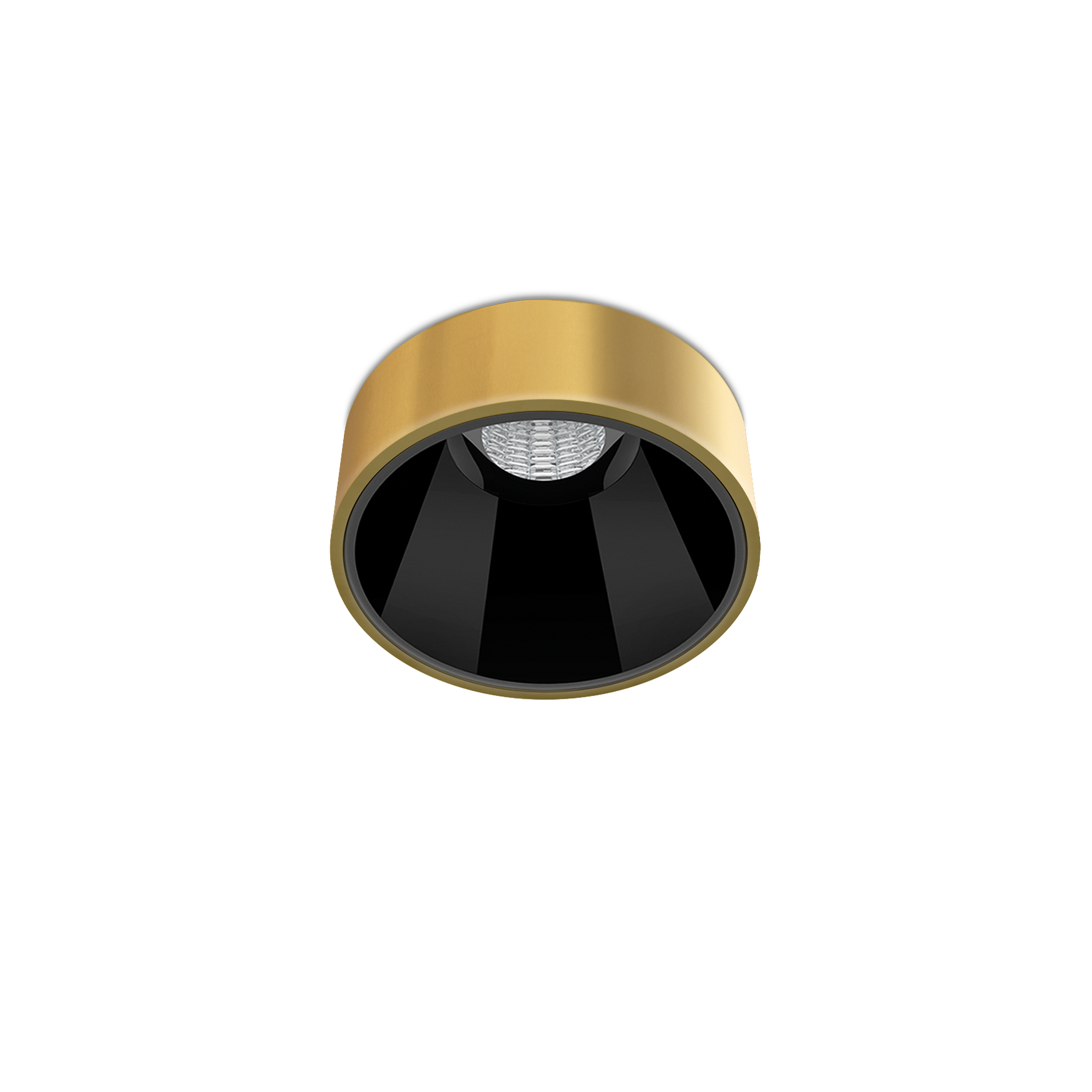

Color: Brushed Gold
Beam Angle
Light Temperature w/ Controls
Specifications
-
Product specifications for Brushed Gold / 23° / 2700K w/ No Dim
BRAND

Arkoslight

TYPE

Ceiling

MATERIAL

Aluminium,

Acrylonitrile Butadiene Styrene,

Polycarbonate

DIMENSIONS

Ø 5,7 cm x 5,3 cm x (No Dim, Min.) 6.0 cm
Ø 5,7 cm x 5,3 cm x (DALI/PUSH, Min.) 9.0 cm

LIGHT TEMPERATURE

2700K; 3000K; 3500K or 4000K

ELECTRICAL CHARACTERISTICS

6W - 500 mA
97 lm/W (2700K)
102 lm/W (3000K)
105 lm/W (3500K)
108 lm/W (4000K)

PHOTOMETRIC DATA

LED L80B10 >60.000h
Chromatic Stability: MacAdam Step 2
2700K: 580 lm
3000K: 610 lm
3500K: 630 lm
4000K: 650 lm
CRI>90
Dimming: No Dim, DALI, Phase Cut, Push
Energy Efficiency Class F
IP20
