Product specifications for Textured Black / No Dim / 2700K

BRAND

Arkoslight

TYPE

System

MATERIAL

Aluminium,

Optical Glass.

DIMENSIONS

Ø 6.5 cm x 4.4 cm

LIGHT TEMPERATURE

2700K; 3000K or 4000K

ELECTRICAL CHARACTERISTICS

6W
135 lm/W (2700K)
144 lm/W (3000K)
153 lm/W (4000K)
350 mA

PHOTOMETRIC DATA

L80B10 >60.000h
810 lm (2700K)
865 lm (3000K)
920 lm (4000K)
MacAdam Step 2
No Dim or DALI.
CRI>90
Energy Efficiency Class: E
IP20

Puck 48V

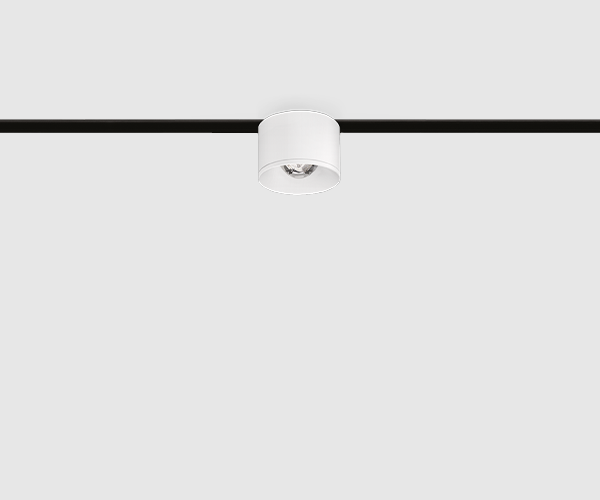

Puck 48V - Puck S 48V Short

Using a spherical glass lens, Puck uses refraction to direct light outwards, reducing glare to an exceptional degree and concentrating it at a very defined angle. A piece of jewellery that combines discretion and performance.

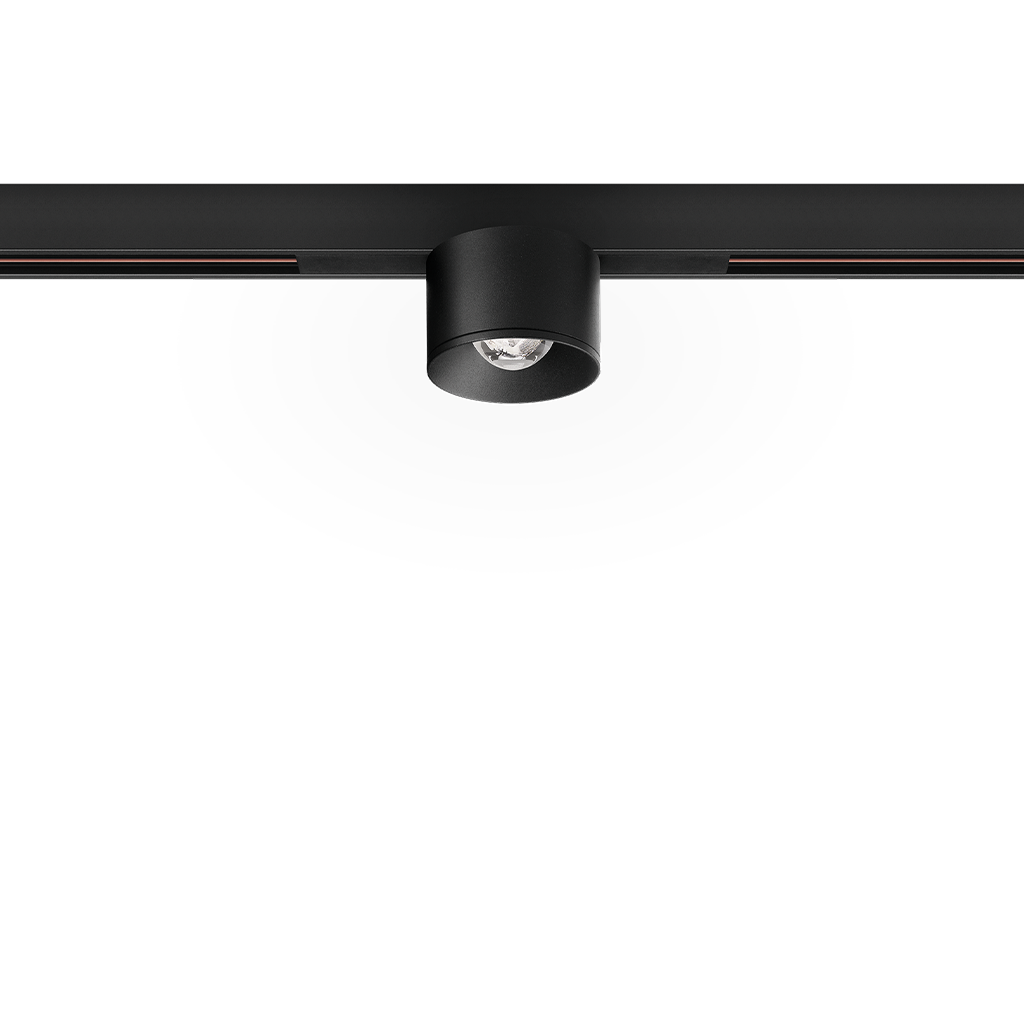

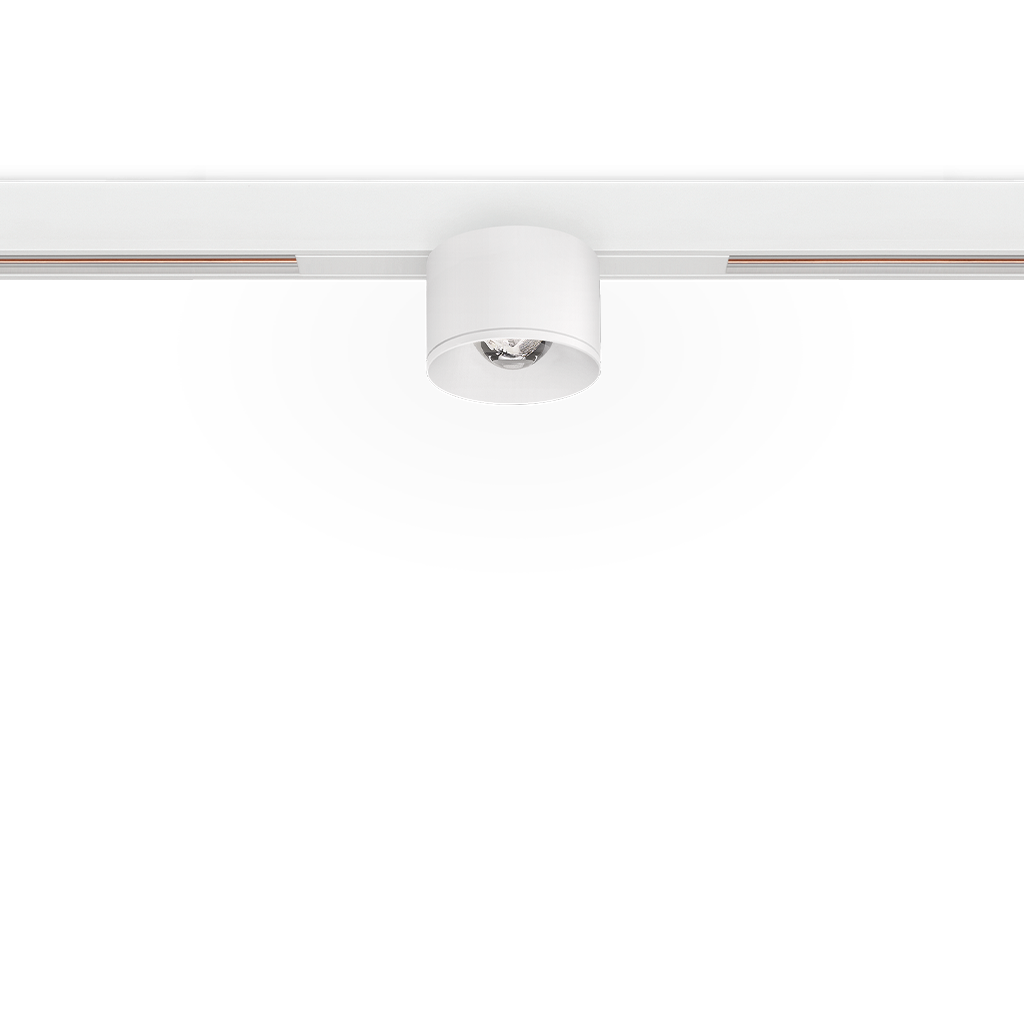

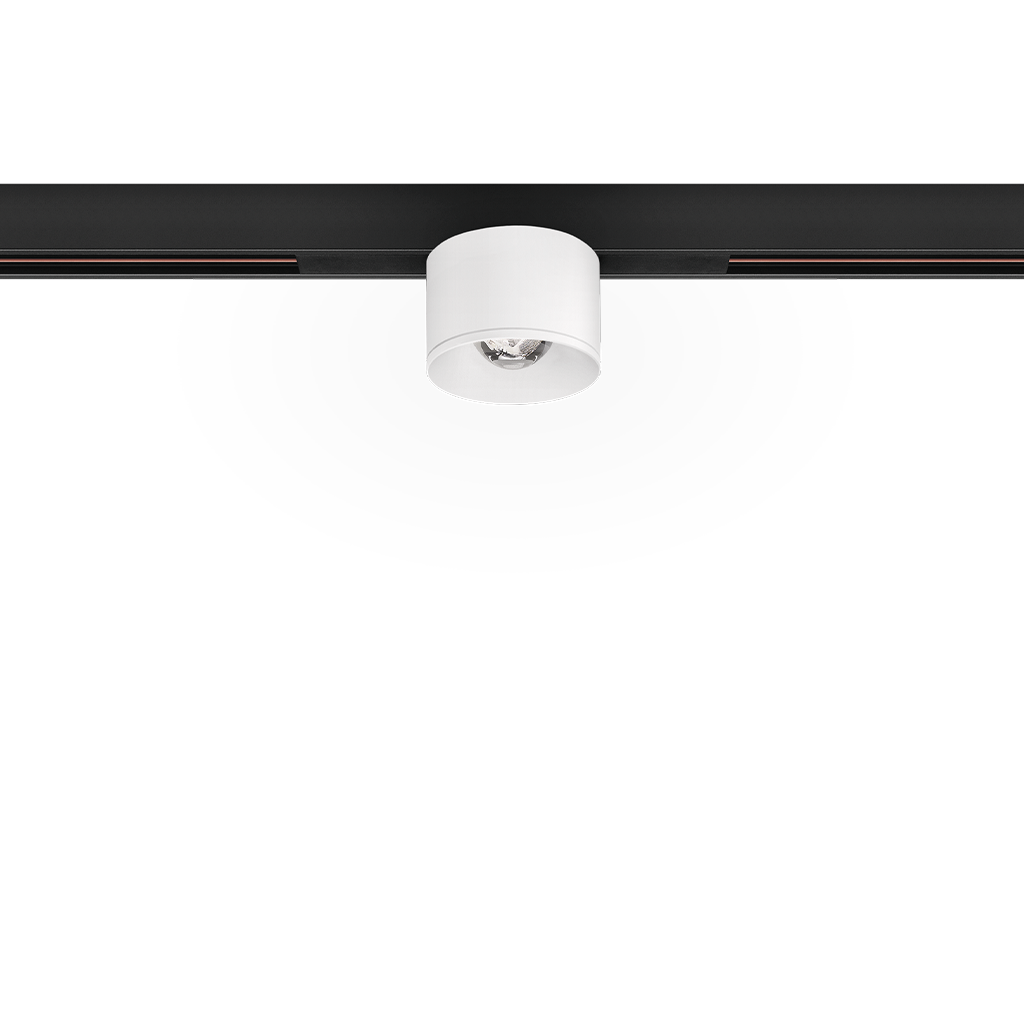

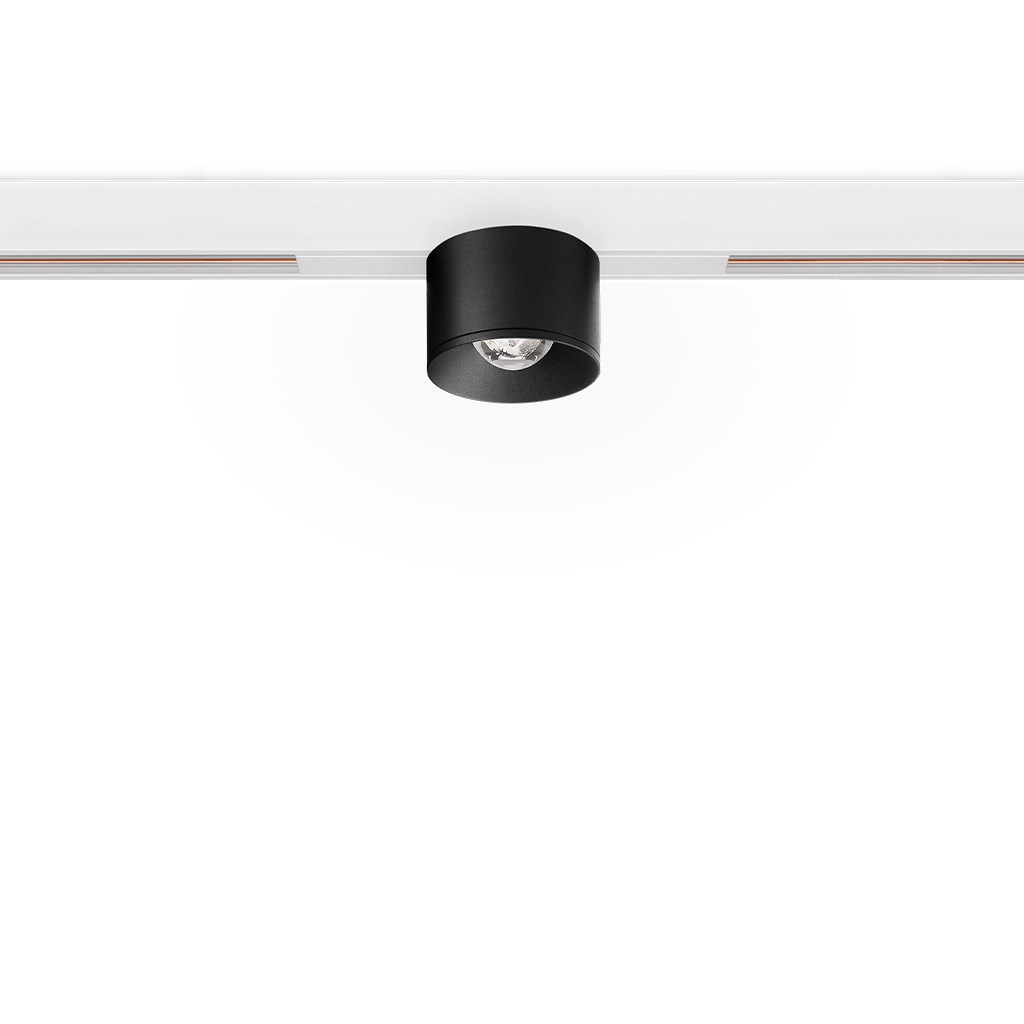

Model: Puck S 48V Short

Puck S 48V Short

Puck S 48V

Colour Textured Black Textured Black w/ White track Textured White Textured White w/ White track

Dimming No Dim DALI

Light Temperature 2700K 3000K 4000K

Downloads

Product specifications for Textured Black / No Dim / 2700K

BRAND

Arkoslight

TYPE

System

MATERIAL

Aluminium,

Optical Glass.

DIMENSIONS

Ø 6.5 cm x 4.4 cm

LIGHT TEMPERATURE

2700K; 3000K or 4000K

ELECTRICAL CHARACTERISTICS

6W
135 lm/W (2700K)
144 lm/W (3000K)
153 lm/W (4000K)
350 mA

PHOTOMETRIC DATA

L80B10 >60.000h
810 lm (2700K)
865 lm (3000K)
920 lm (4000K)
MacAdam Step 2
No Dim or DALI.
CRI>90
Energy Efficiency Class: E
IP20
