Product specifications for 1 (10,5 W) / No Dim / 3000K

BRAND

Arkoslight

TYPE

Ceiling

MATERIAL

Aluminium,

Polymethyl Methacrylate

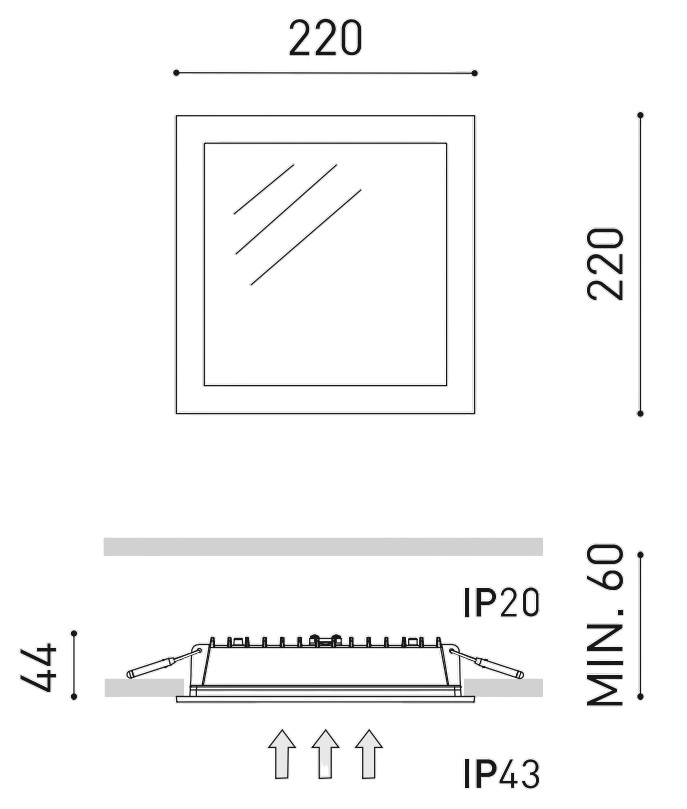

DIMENSIONS

Ø 22 cm x 22 cm x 4.4 cm

LIGHT TEMPERATURE

3000K or 4000K

ELECTRICAL CHARACTERISTICS

10.5W
157 lm/W (3000K)
160 lm/W (4000K)
350 mA

PHOTOMETRIC DATA

L80B10 >60.000h
1650 lm (3000K)
1675 lm (4000K)
No Dim, Push or DALI.
MacAdam Step 2
CRI>90
Energy Efficiency Class: D
IP43
IK07

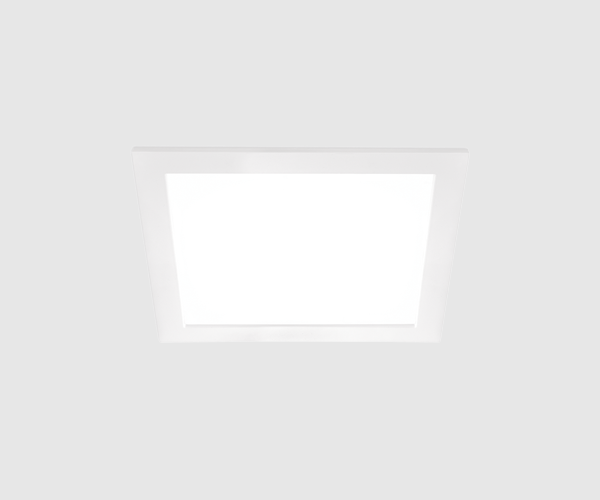

Madison

Madison

A squared recessed downlight in which the narrowness and the reduced width of its frame are the differentiating hallmarks of this elegant luminaire.

Model 1 (10,5 W) 2 (15,5 W) 3 (22 W)

Dimming No Dim Push DALI

Light Temperature 3000K 4000K

Lead time: 12 weeks

Downloads

Product specifications for 1 (10,5 W) / No Dim / 3000K

BRAND

Arkoslight

TYPE

Ceiling

MATERIAL

Aluminium,

Polymethyl Methacrylate

DIMENSIONS

Ø 22 cm x 22 cm x 4.4 cm

LIGHT TEMPERATURE

3000K or 4000K

ELECTRICAL CHARACTERISTICS

10.5W
157 lm/W (3000K)
160 lm/W (4000K)
350 mA

PHOTOMETRIC DATA

L80B10 >60.000h
1650 lm (3000K)
1675 lm (4000K)
No Dim, Push or DALI.
MacAdam Step 2
CRI>90
Energy Efficiency Class: D
IP43
IK07
