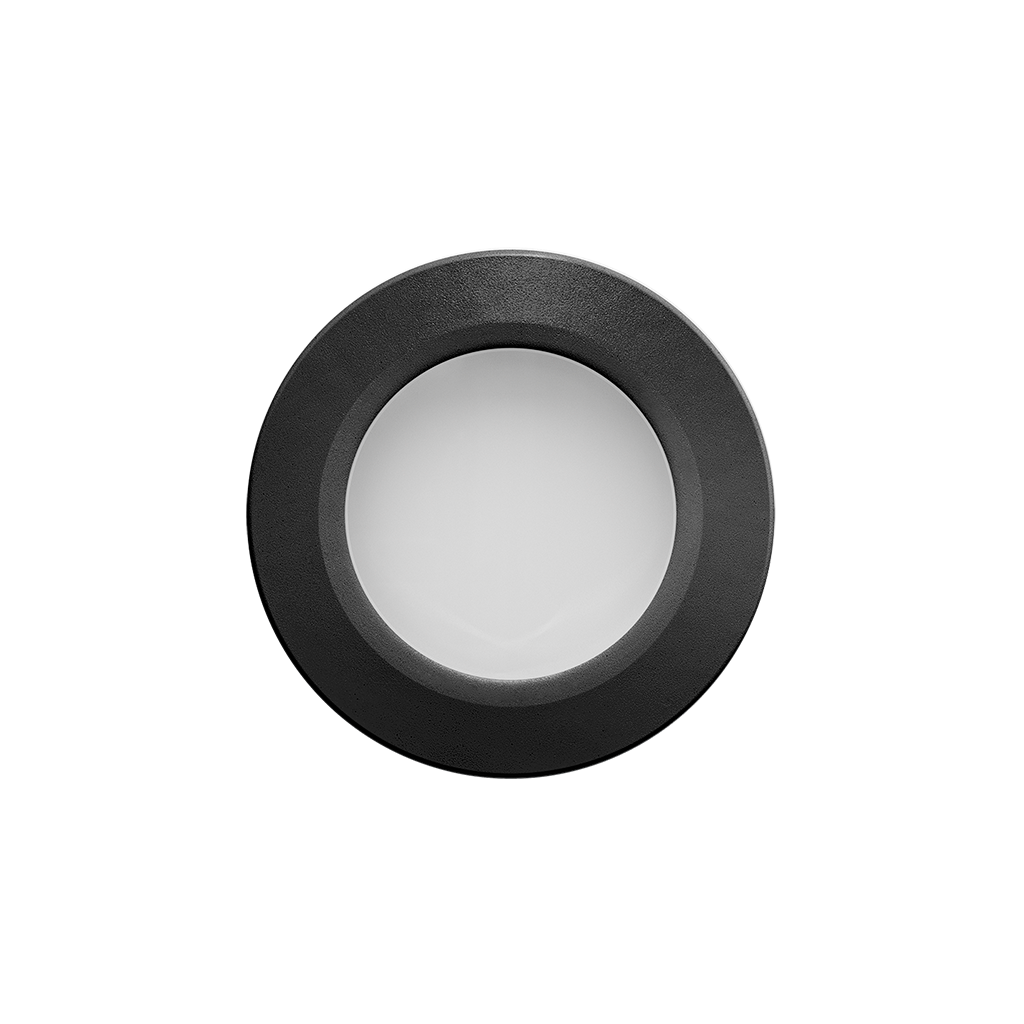

Product specifications for Black / 2700K

BRAND

Arkoslight

TYPE

Outdoor

MATERIAL

Stainless Steel (AISI 304),

Aluminium,

Glass-Transparent

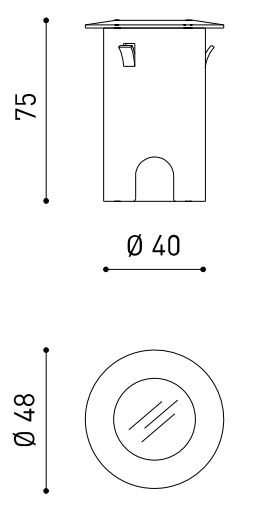

DIMENSIONS

Ø 4,8 cm x 7.5 cm x 4 cm

LIGHT TEMPERATURE

2700K; 3000K; 4000K or BlueK

ELECTRICAL CHARACTERISTICS

1 W
100 lm/W (2700K) | 120 lm/W (3000K) | 130 lm/W (4000K, BlueK)

PHOTOMETRIC DATA

LED L90B10 >102.000h
Chromatic Stability: MacAdam Step 3
100 lm (2700K)
120 lm (3000K)
130 lm (4000K, BlueK)
Energy Efficiency Class: F (2700K) or E (3000K; 4000K; BlueK)
IP65

Step

Step - Step

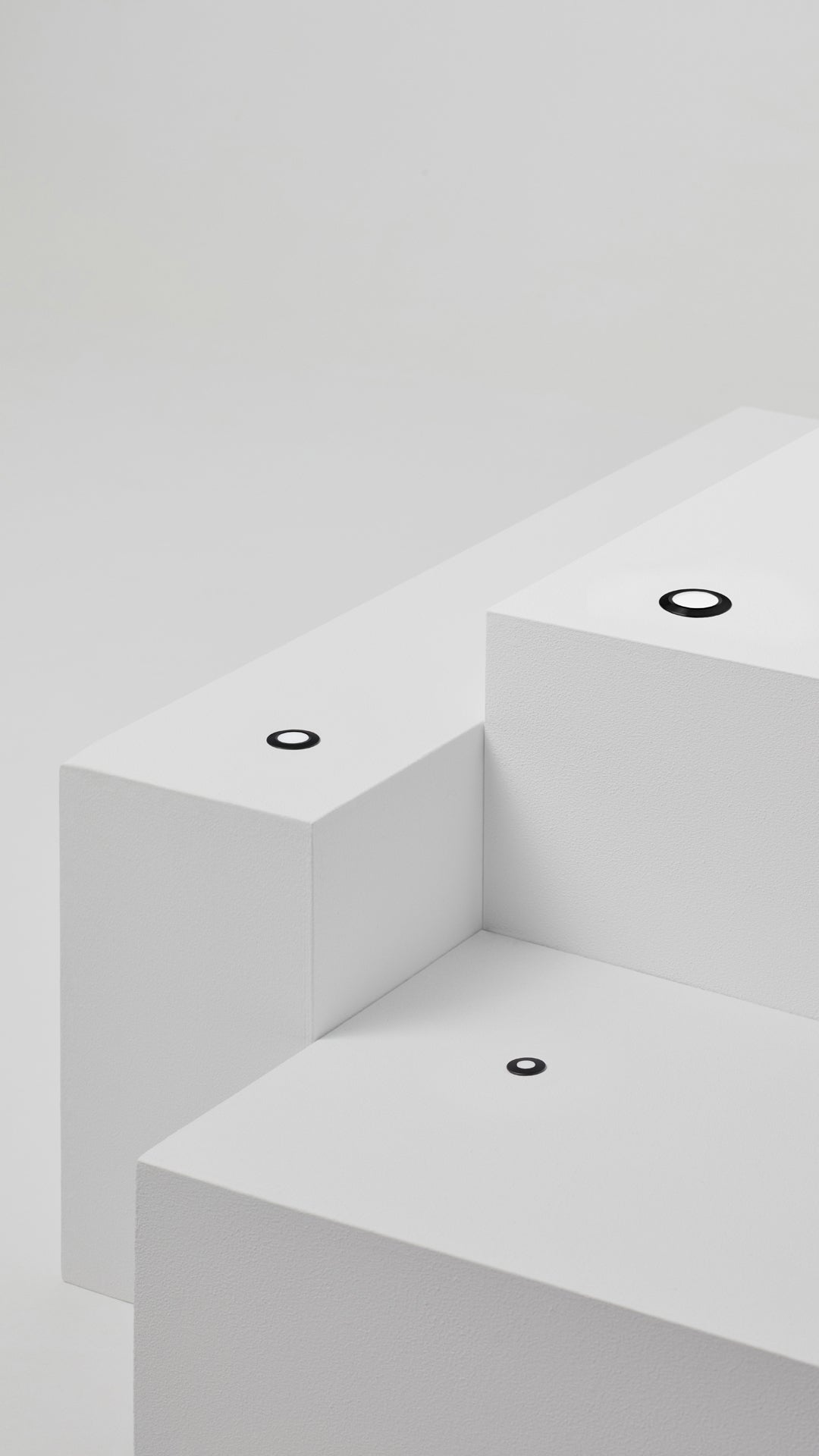

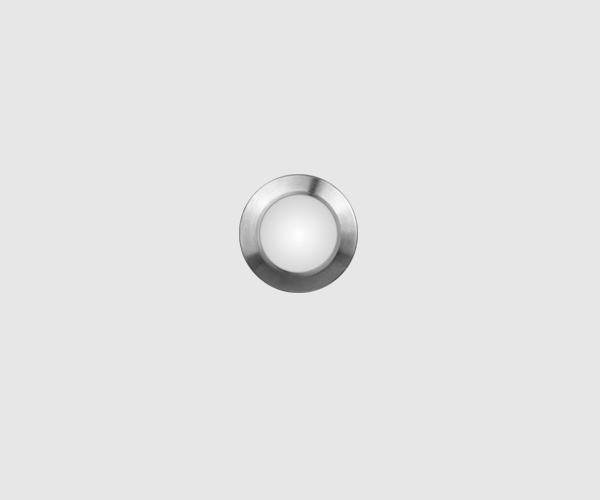

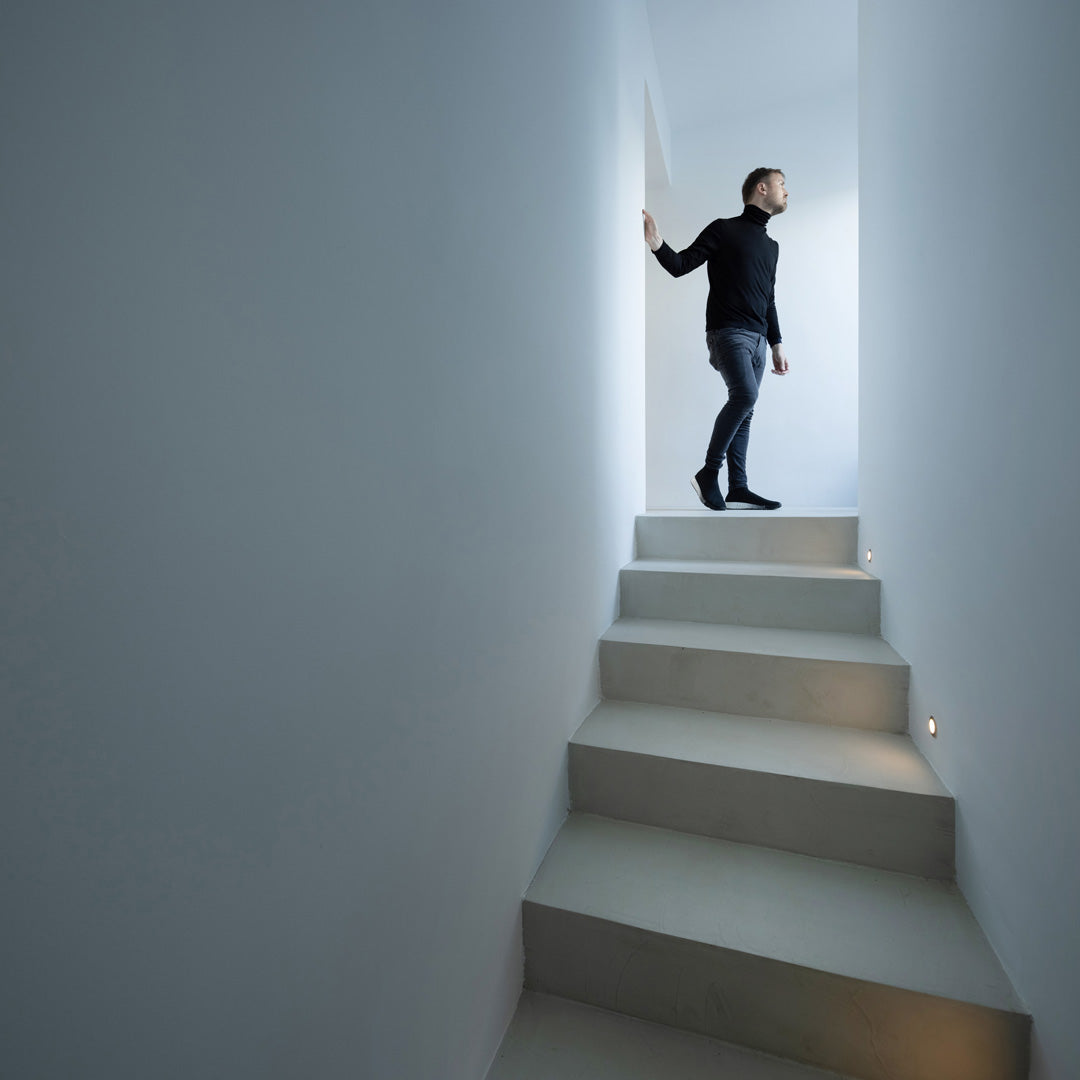

Step is a floor-recessed luminaire for signage functions. Discrete, elegant and functional, it offers the technical features of a leaktight LED luminaire that is able to support weight loads. It is applicable in pedestrian areas, both outdoors and indoors. Other outstanding features are its small size, low consumption and considerable durability.

Variation: Step

Step

Step S

Step XS

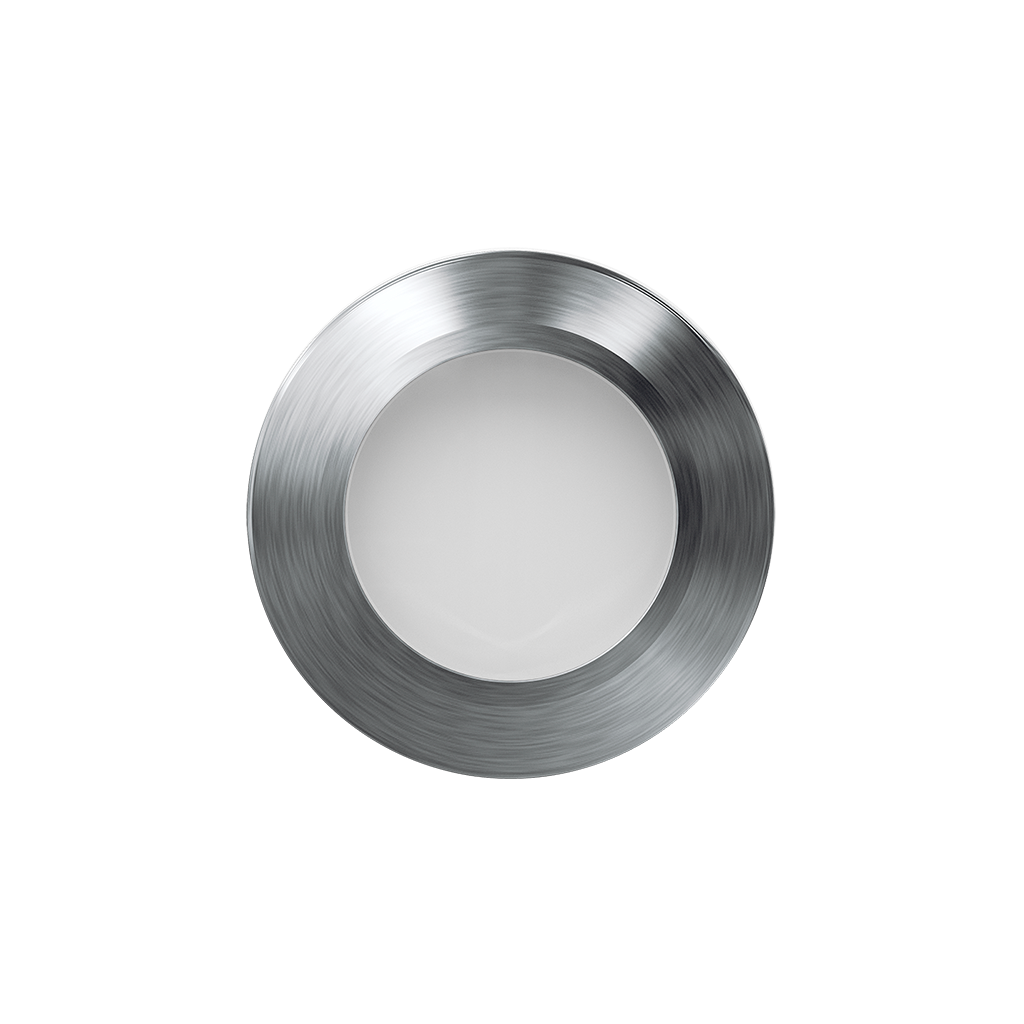

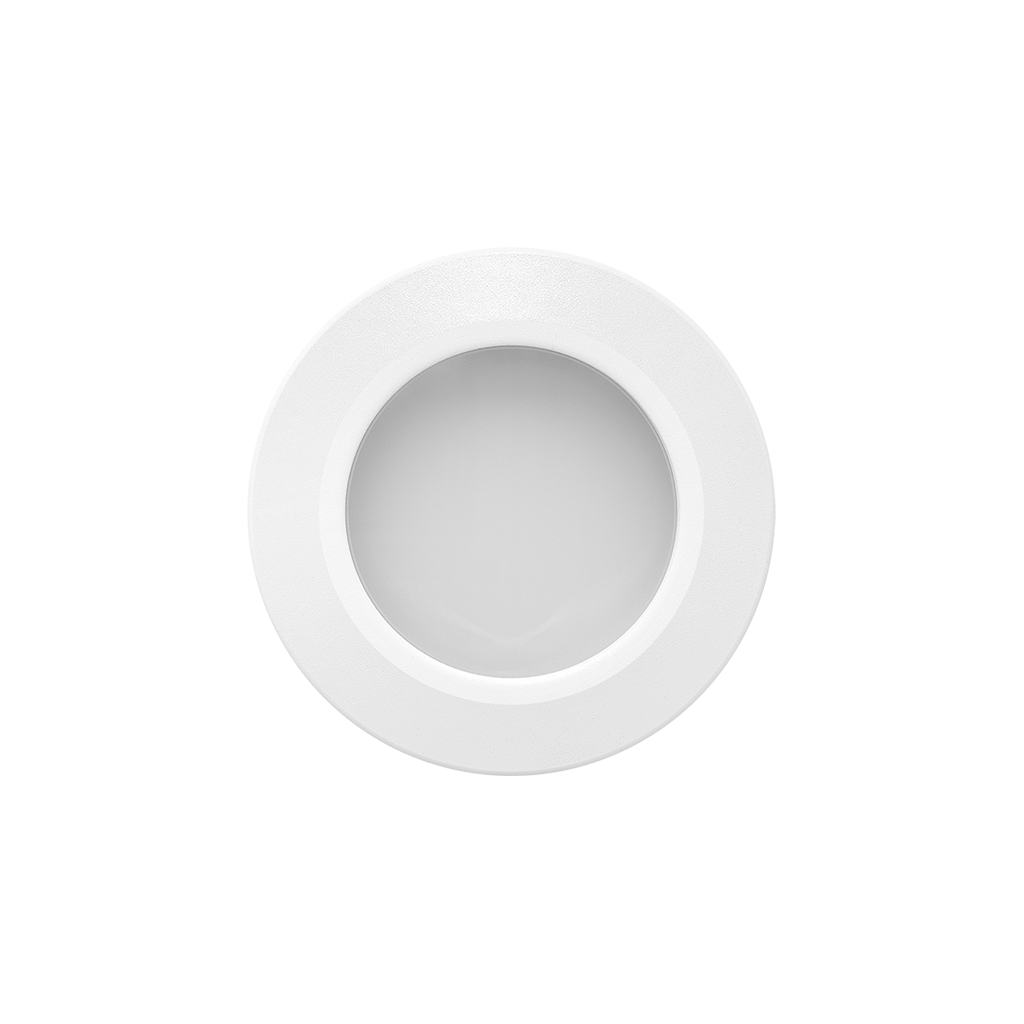

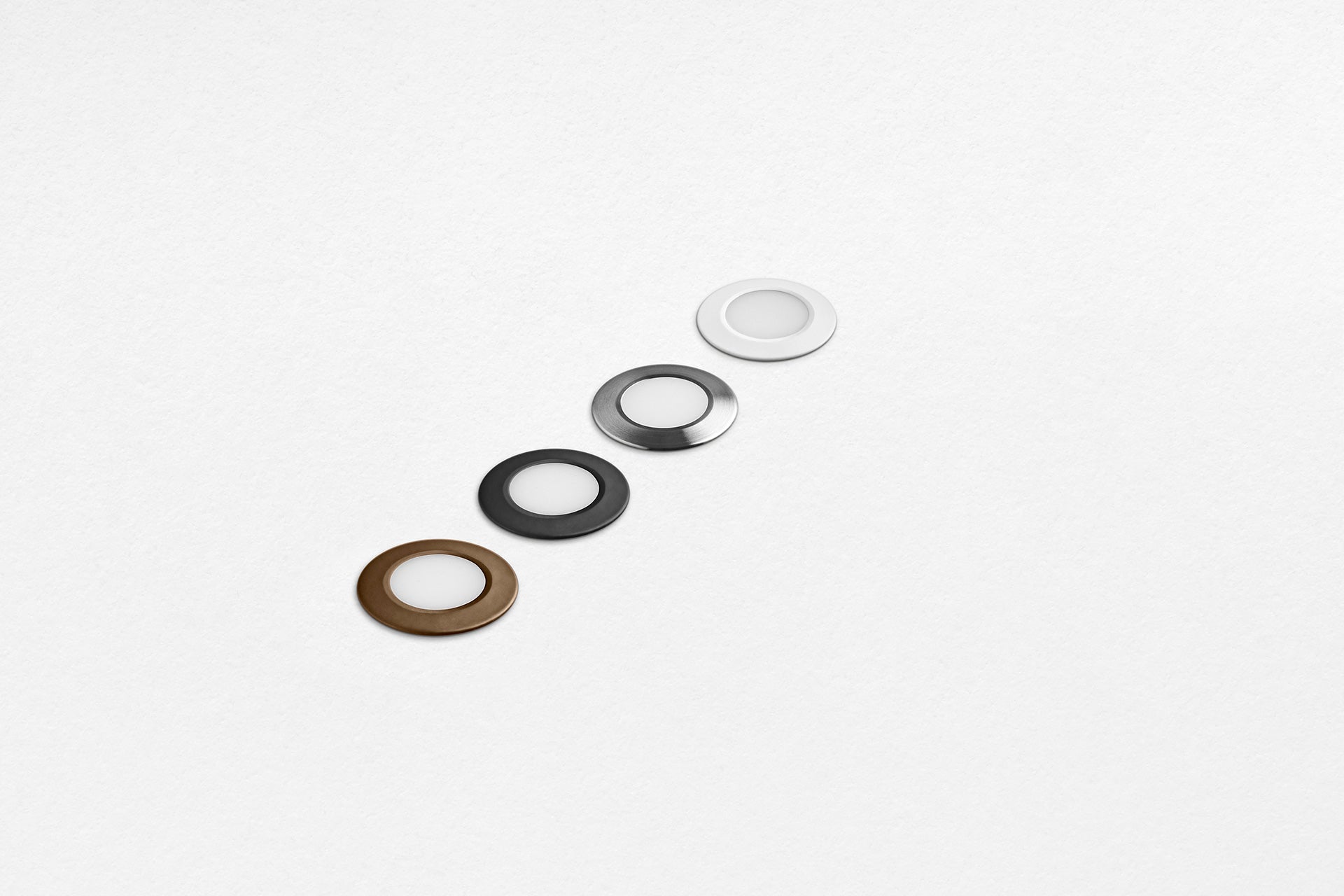

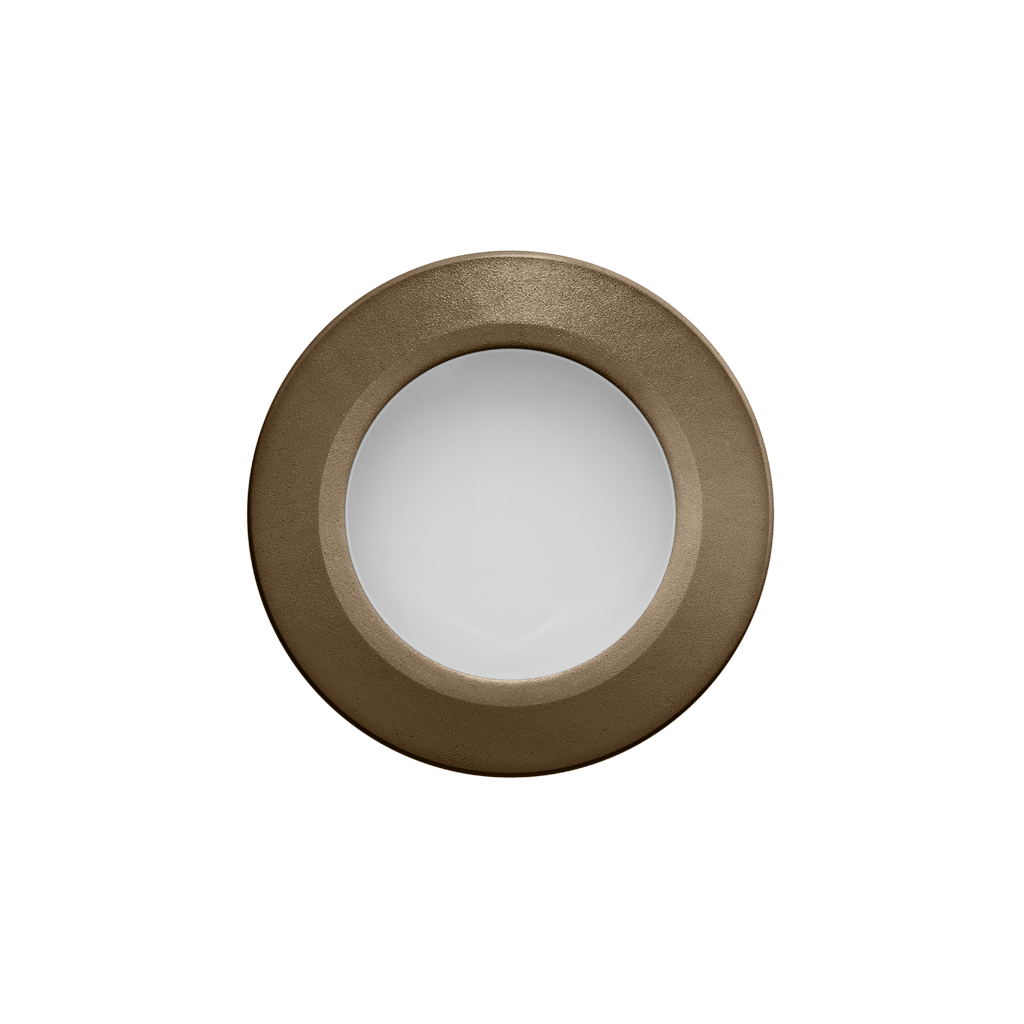

Colour Black Stainless Steel Textured Oxidon White

Light Temperature 2700K 3000K 4000K BLUEK
