Specifications
-
Product specifications for Maxi 2 / IP43 / No Dim w/ 3000K
BRAND

Arkoslight

TYPE

Ceiling

MATERIAL

Aluminium,

Polymethyl Methacrylate

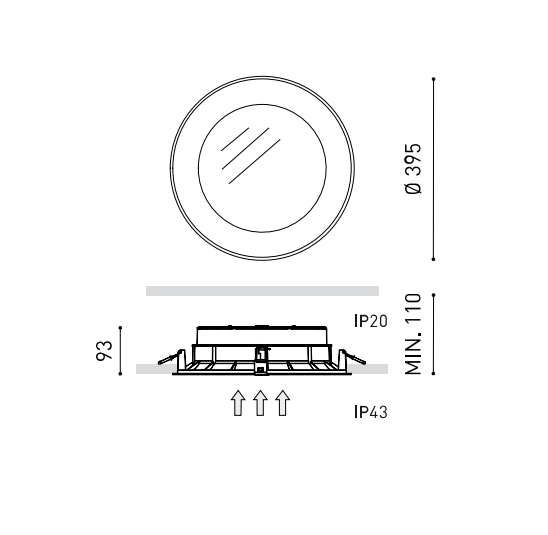

DIMENSIONS

Ø 11 cm x 9.3 cm x 39.5 cm

LIGHT TEMPERATURE

3000K or 4000K

ELECTRICAL CHARACTERISTICS

(2) 15W (No Dim, Push, Dali) 350 mA
(3) 22W (No Dim, Push, Dali) 500 mA
(4) 31W (No Dim, Push, Dali) 700 mA
(5) 40W (No Dim, Push, Dali) 900 mA

PHOTOMETRIC DATA

LED L80B10 >60.000h
2450 lm; 3450 lm; 4700 lm or 5825 lm (3000K)
2500 lm; 3500 lm; 4775 lm or 5925 lm (4000K)
CRI>90
Energy efficiency class D
IP54 or IP53

Arkoslight

Drop

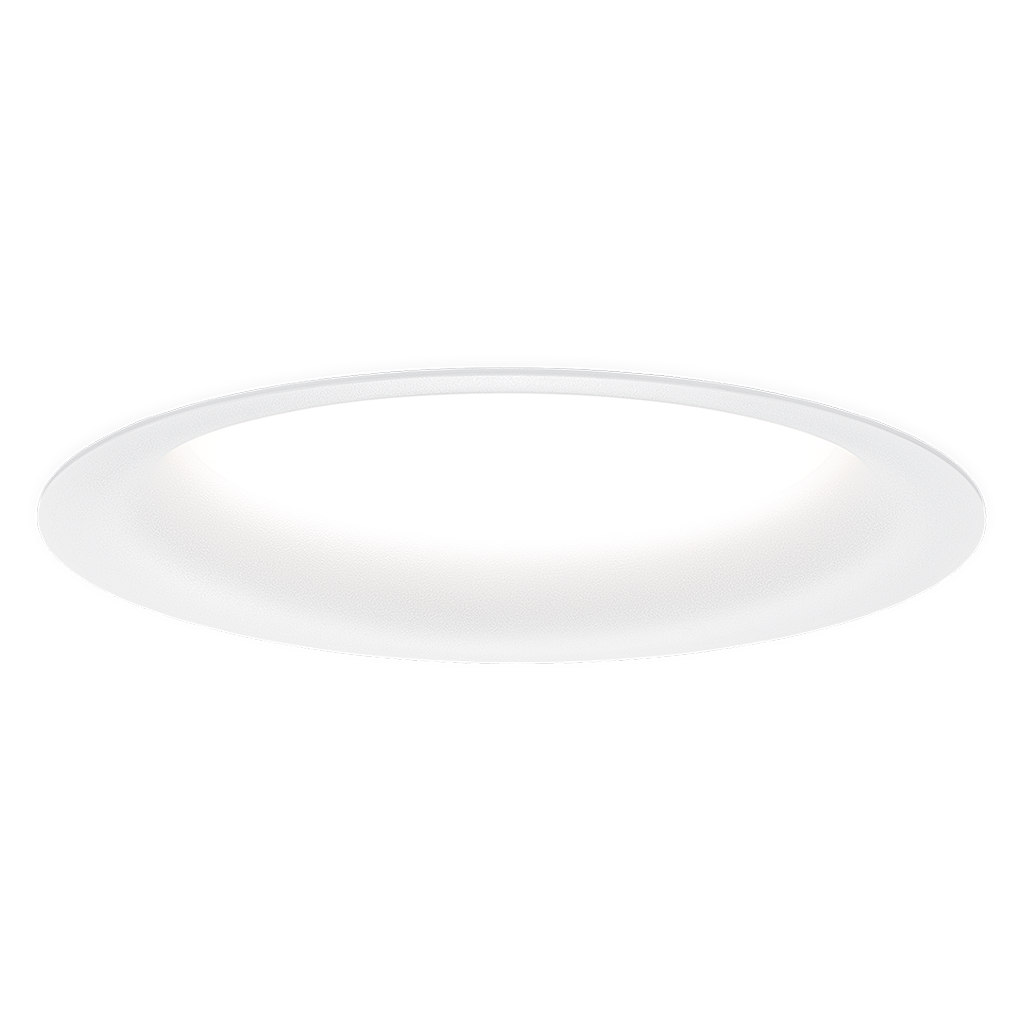

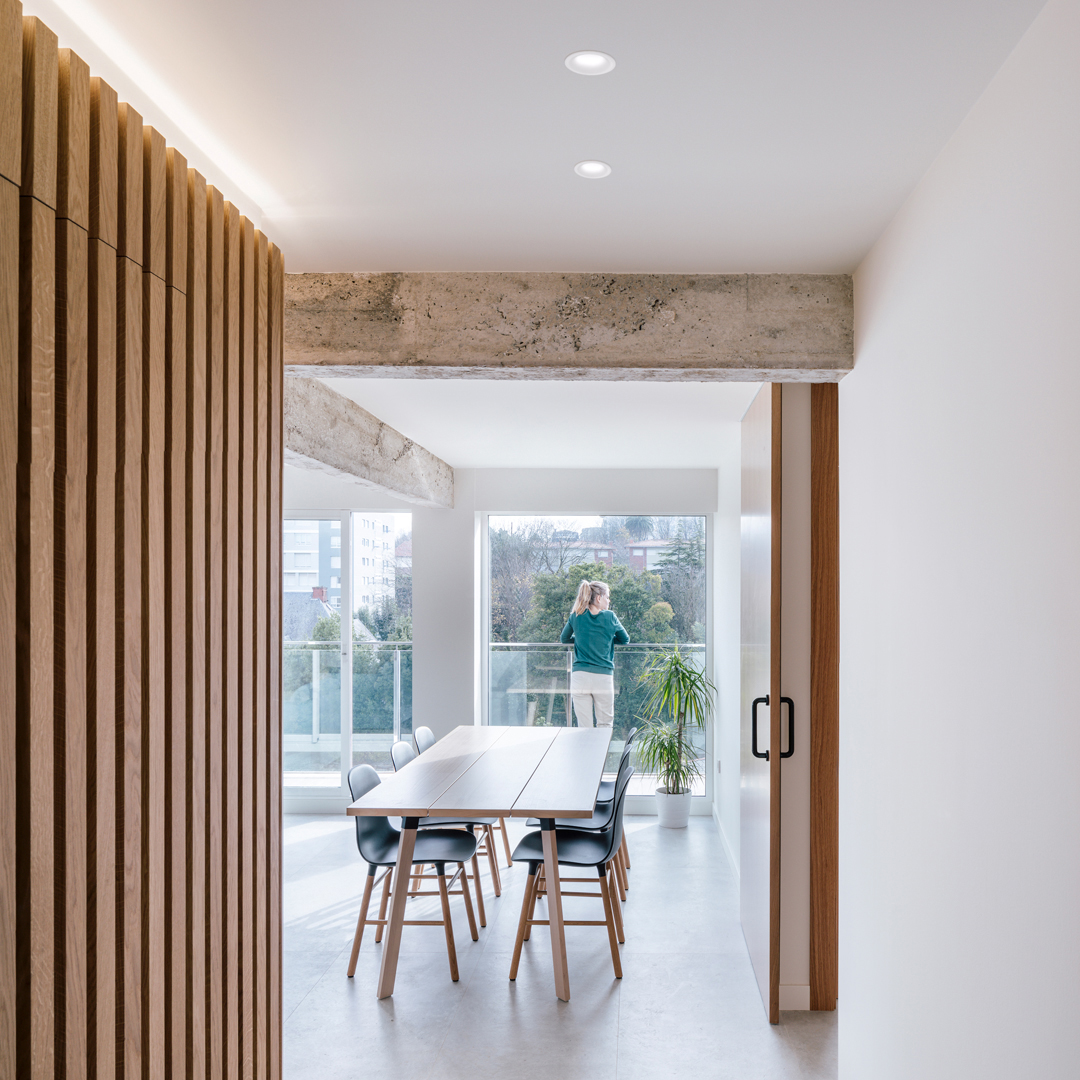

Drop - Maxi

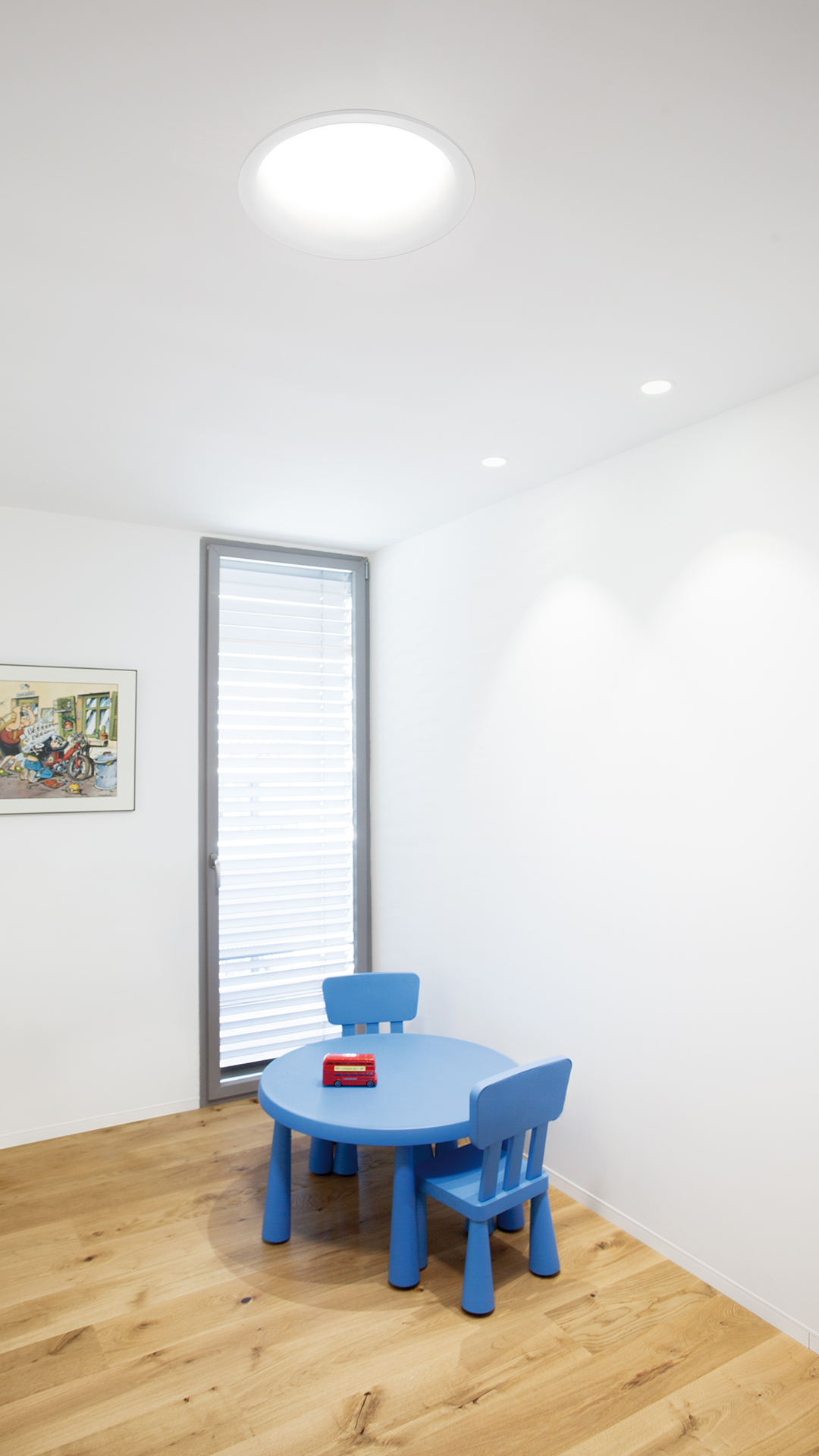

When lit, the lighting of Drop produces an effect of erasing visually the rims of the fitting, creating the illusion of illumination which resembles that of a natural skylight.

Model: Maxi
Micro Matt
Micro Trans
Mini
Drop
Maxi
Version
Ingress Protection
Dimming w/ Light Temperature
Specifications
-
Product specifications for Maxi 2 / IP43 / No Dim w/ 3000K
BRAND

Arkoslight

TYPE

Ceiling

MATERIAL

Aluminium,

Polymethyl Methacrylate

DIMENSIONS

Ø 11 cm x 9.3 cm x 39.5 cm

LIGHT TEMPERATURE

3000K or 4000K

ELECTRICAL CHARACTERISTICS

(2) 15W (No Dim, Push, Dali) 350 mA
(3) 22W (No Dim, Push, Dali) 500 mA
(4) 31W (No Dim, Push, Dali) 700 mA
(5) 40W (No Dim, Push, Dali) 900 mA

PHOTOMETRIC DATA

LED L80B10 >60.000h
2450 lm; 3450 lm; 4700 lm or 5825 lm (3000K)
2500 lm; 3500 lm; 4775 lm or 5925 lm (4000K)
CRI>90
Energy efficiency class D
IP54 or IP53

View full details
