LODES
Floor | Wall | Ceiling

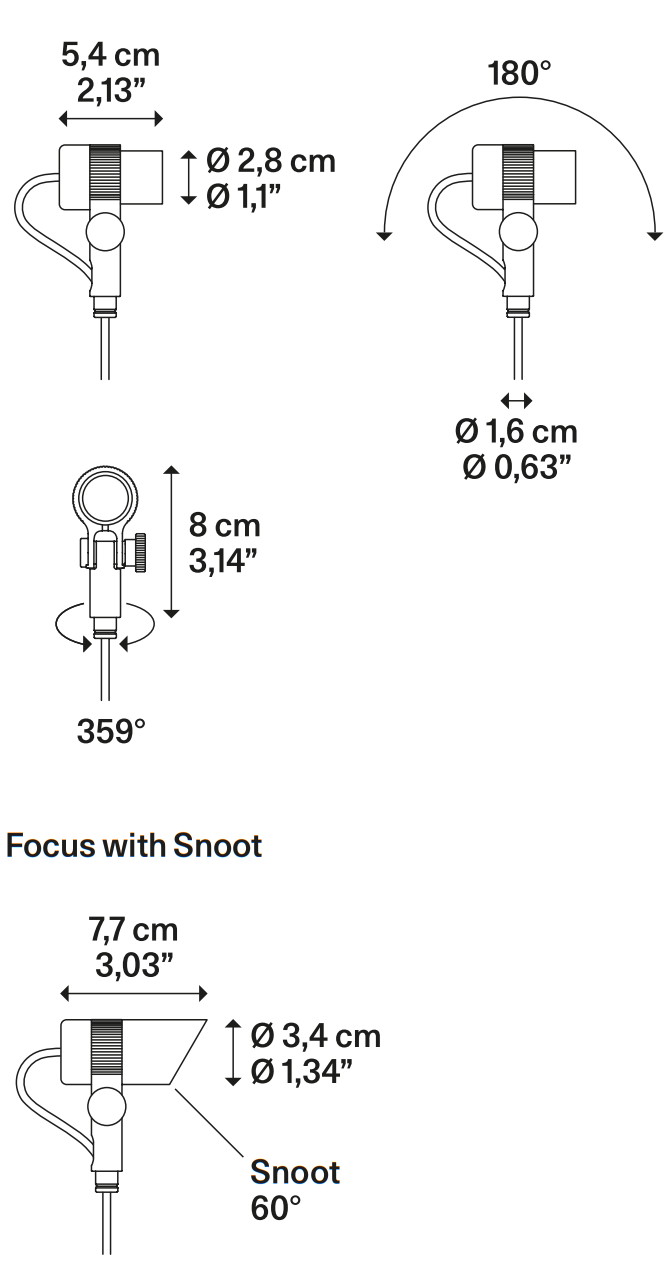

Ø 2,8 cm x 5,4 cm x 8 cm
2200K; 2700K or 3000K
Patrick Norguet
24V
Remote driver required (not included).
LED 2,7 W
2200K: 310 lm (Nominal Flux) | 170 lm (Deliered Flux)
2700K: 280 lm (Nominal Flux) | 182 lm (Deliered Flux)
3000K: 310 lm (Nominal Flux) | 200 lm (Deliered Flux)
CRI > 90
MacAdam < 3–Step
Cable Lenght 1,5 m
Rubber Cable Section 3x 1 mm2
IP67

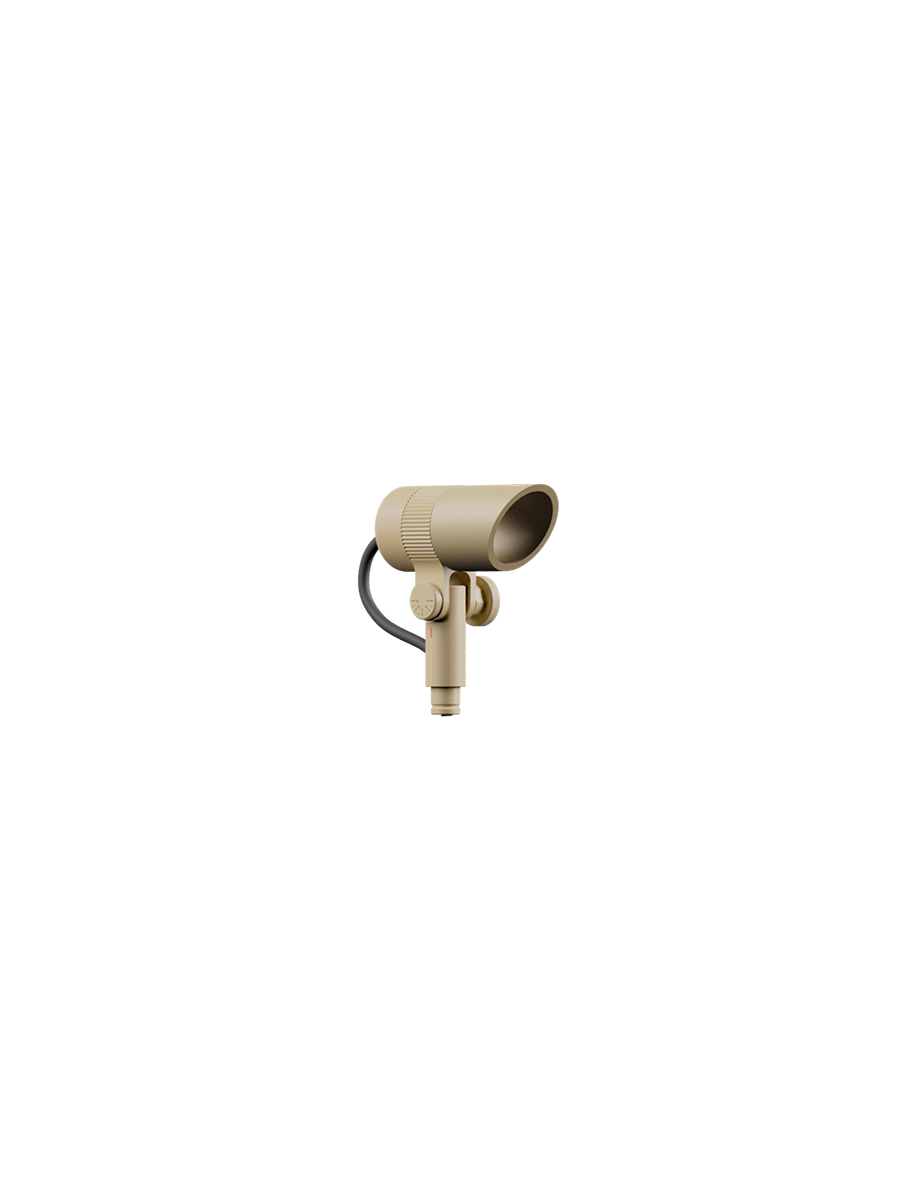

Focus is a multifunctional projector inspired by the world of photography, both in its lines and design, with details that evoke analogue cameras – from the graduated scale engraved on the body, reminiscent of focal lengths, to the front ring that echoes the historic models of Leica and Pentax.
The name Focus refers to the action of ‘focusing’ typical of photography, but also extends to the concept of precisely directing light to shape it and create atmospheres, expressing a design that combines aesthetics, functionality, and attention to detail.

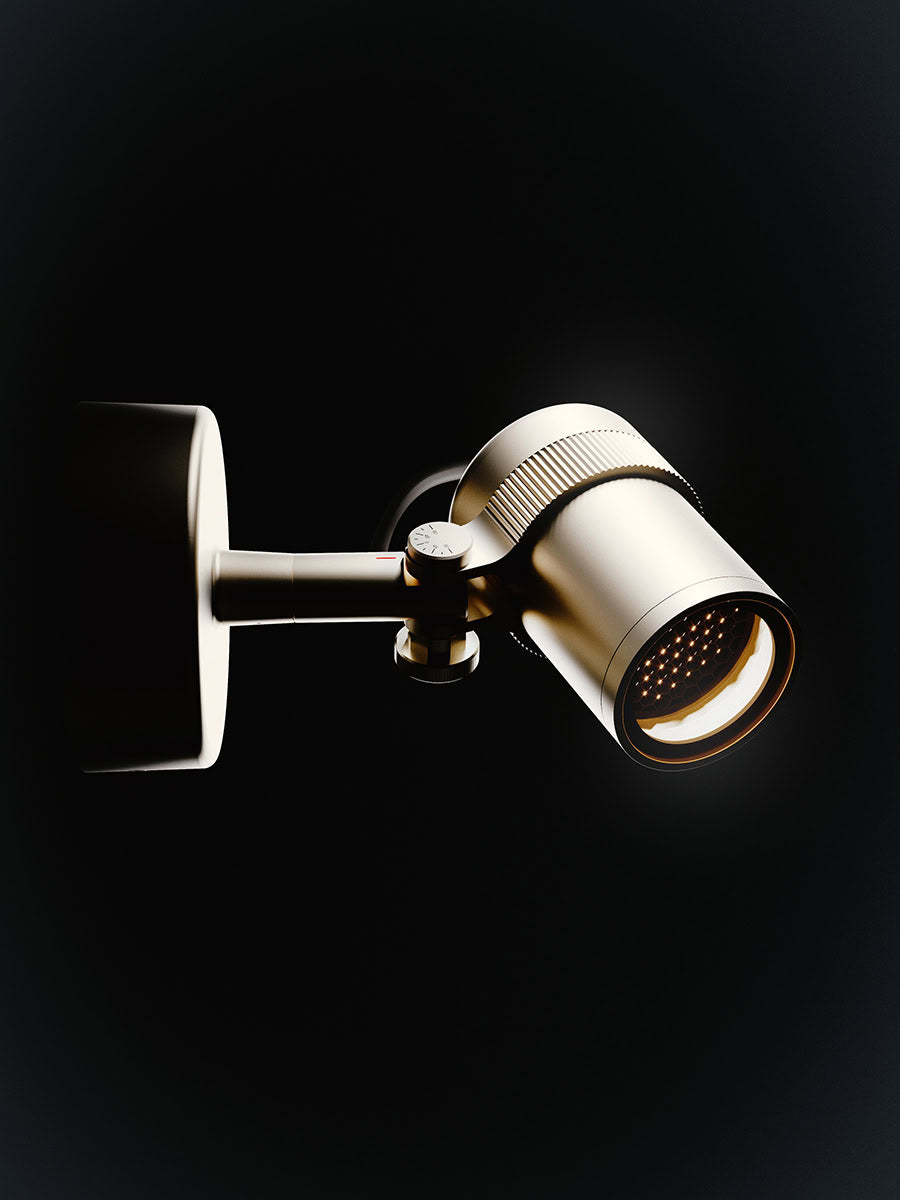

The joint, often relegated to a purely functional role, becomes a central element: it allows the projector to be rotated to optimise the lighting effect, while the goniometer with degree indication acts as a guide for adjusting the angle of inclination, recalling the precision of photographic tripods.

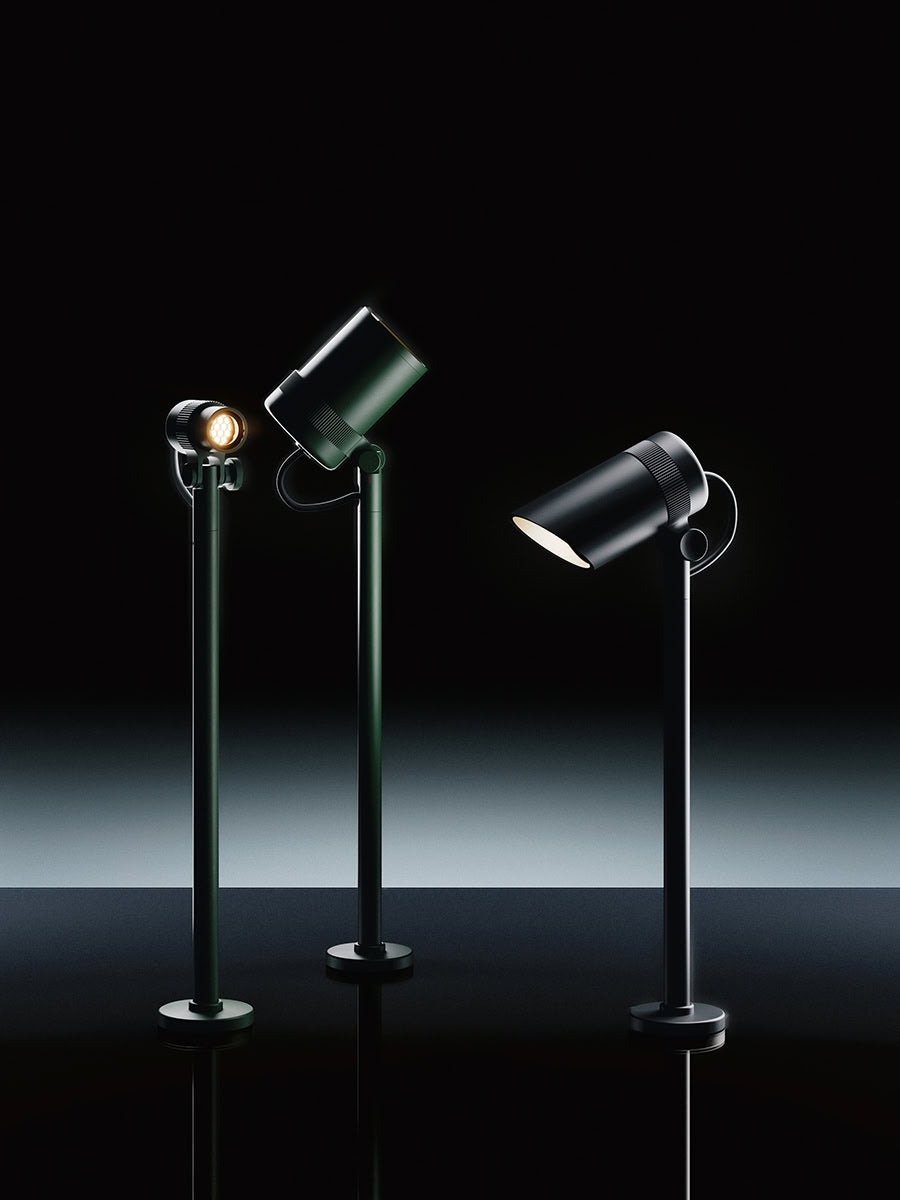

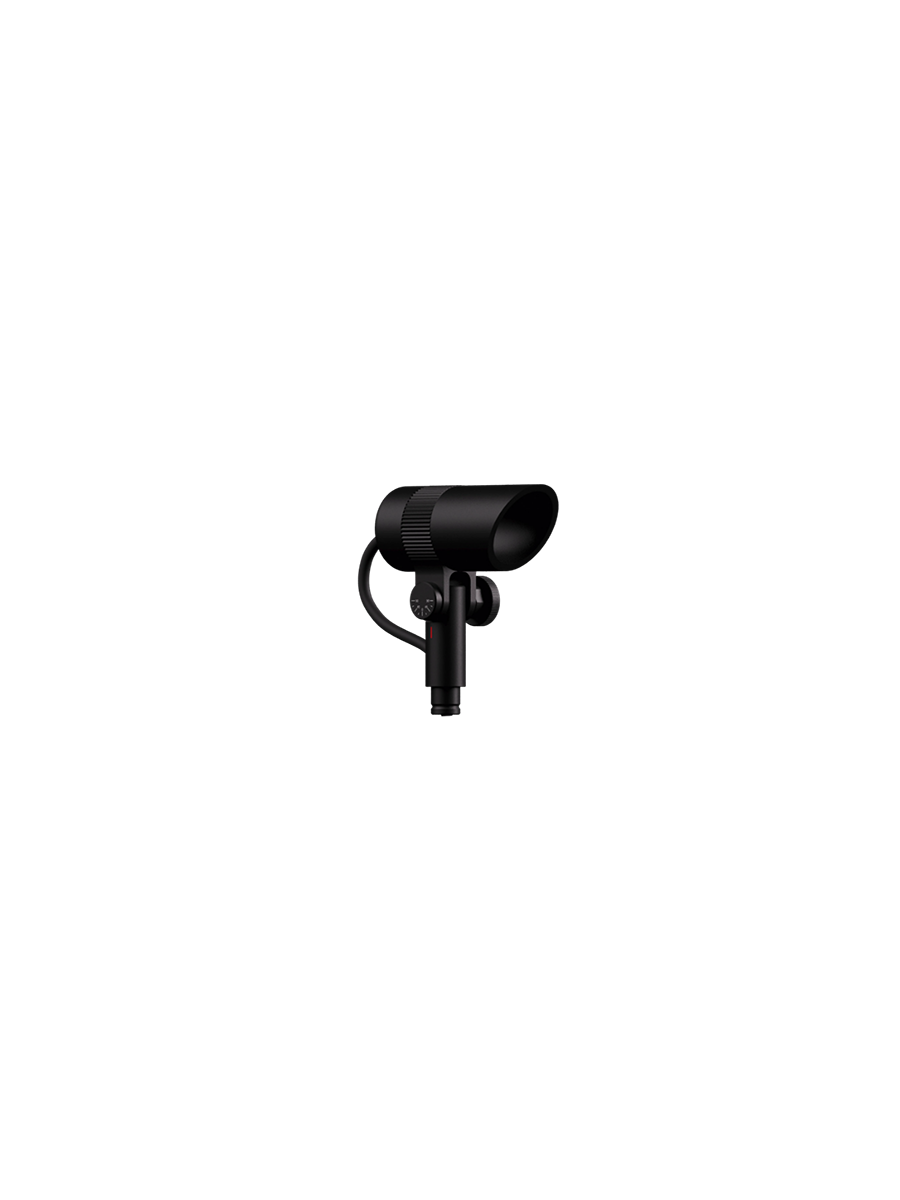

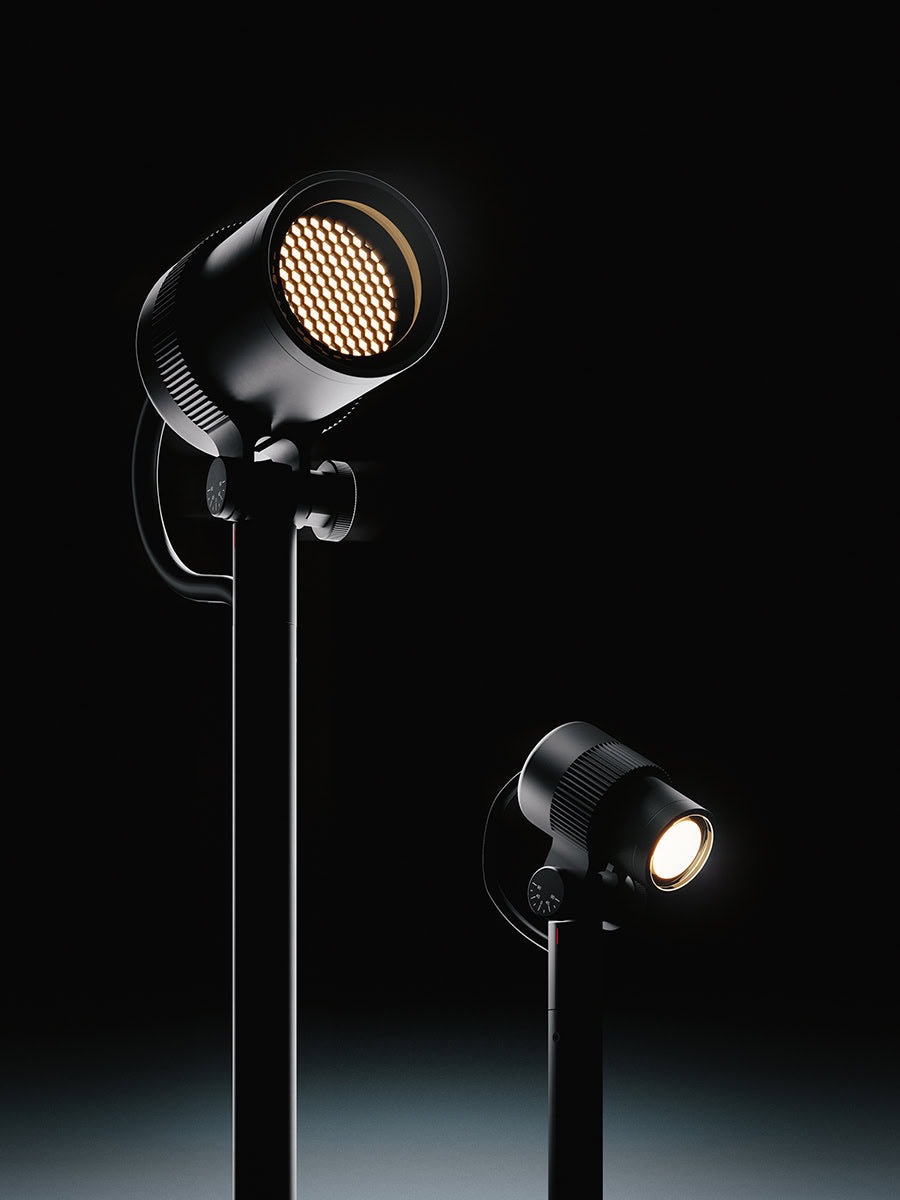

Available in three sizes, the lamp body houses a high-output LED source that allows the light beam to be customised thanks to the three optics available – Spot, Medium and Extra Wide – to achieve focused or diffused effects according to design requirements. The lighting effect can be further personalised with optional internal or external optical accessories – Honeycomb, Half-moon glare shield, Snoot – which emphasise the dynamic character of the design and its interaction with the user.

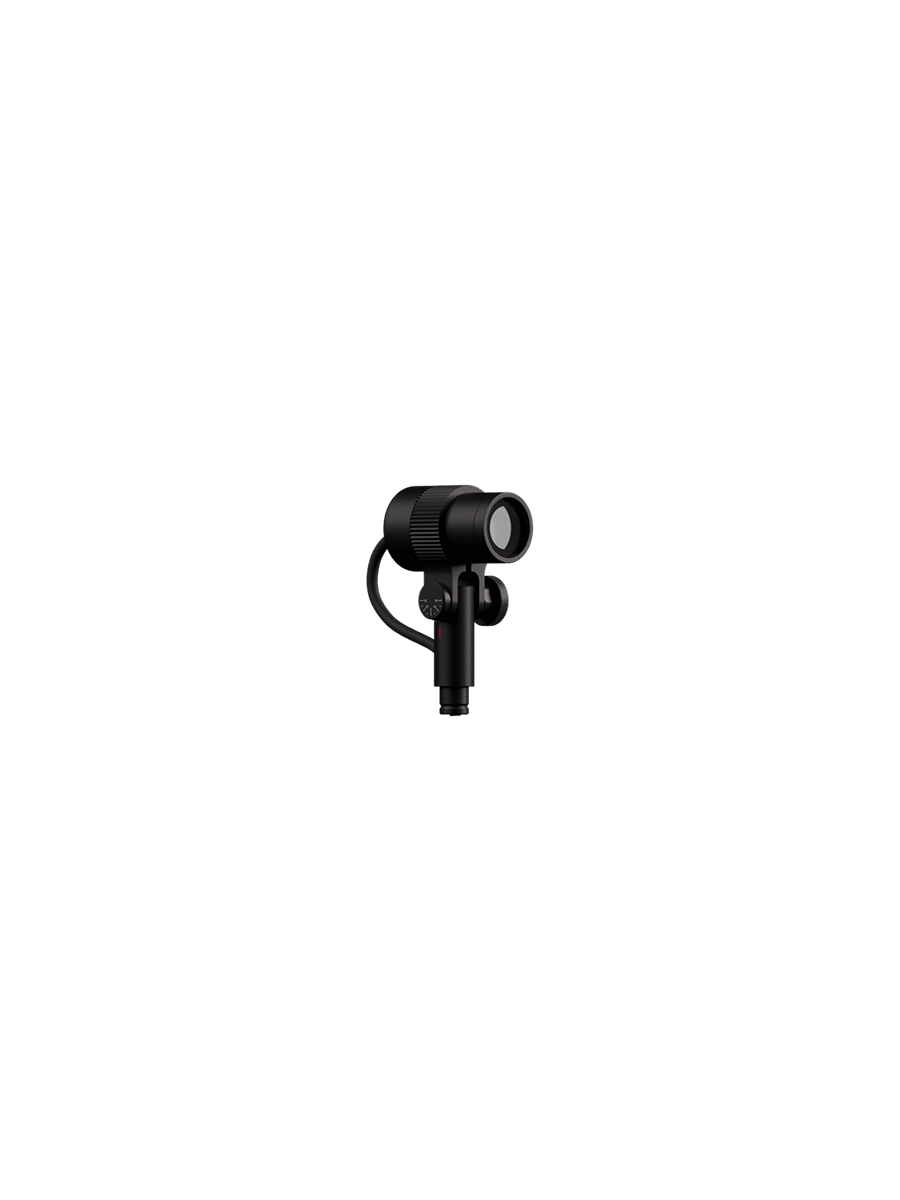

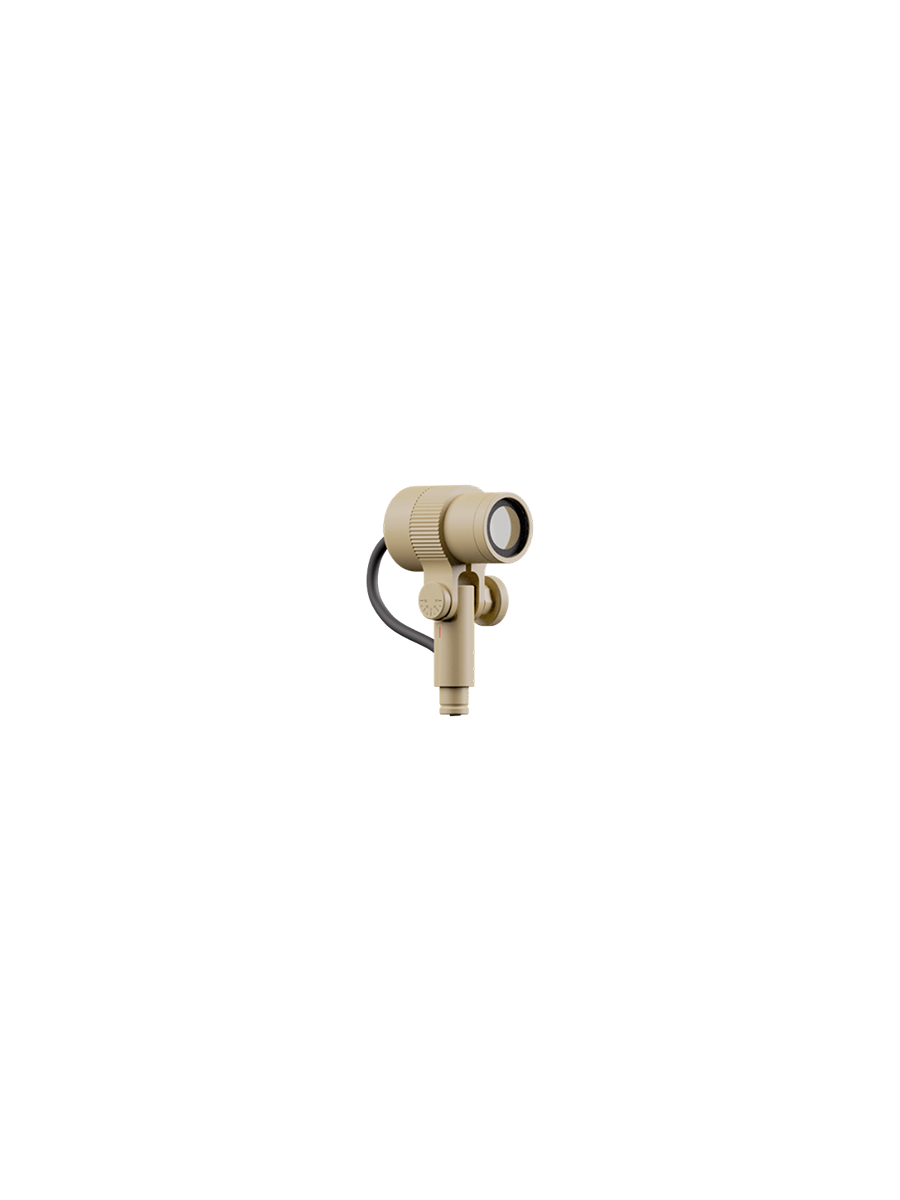

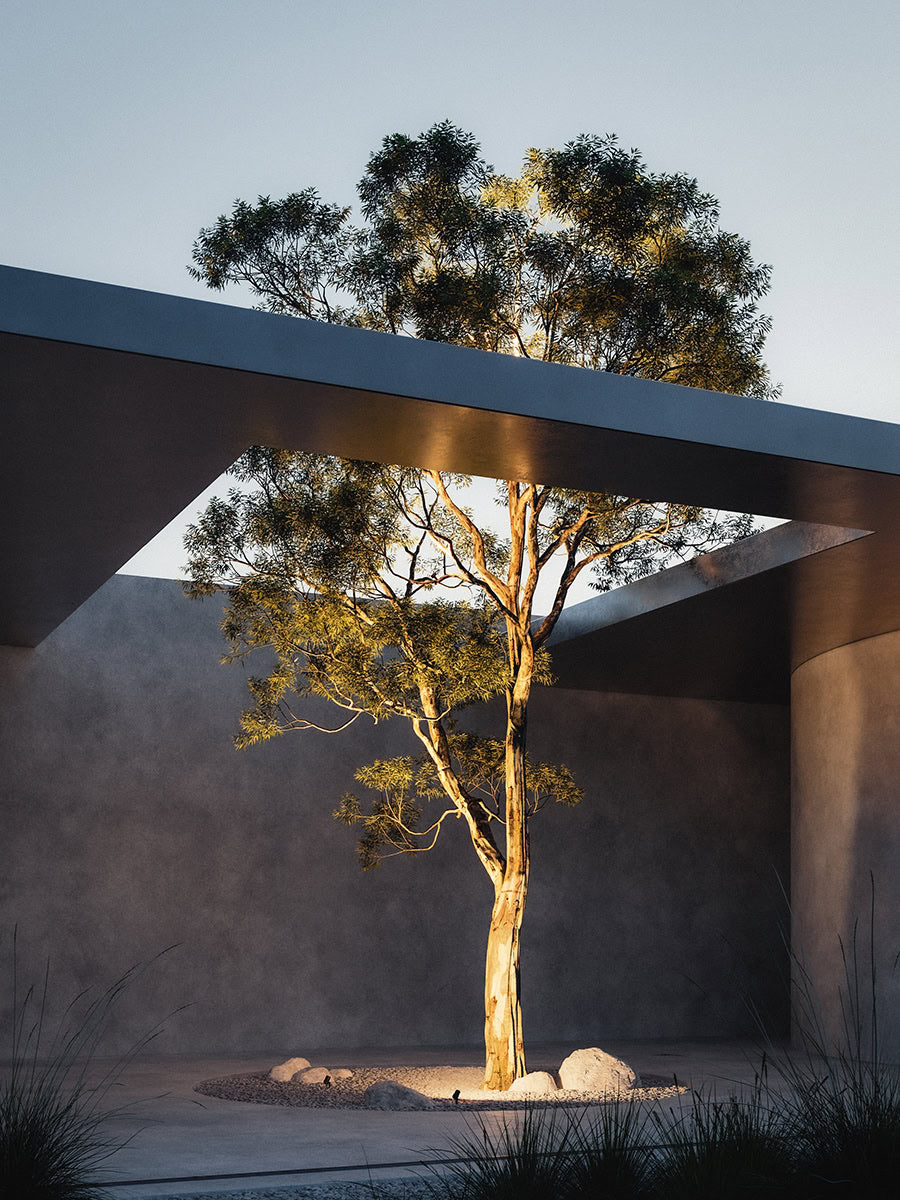

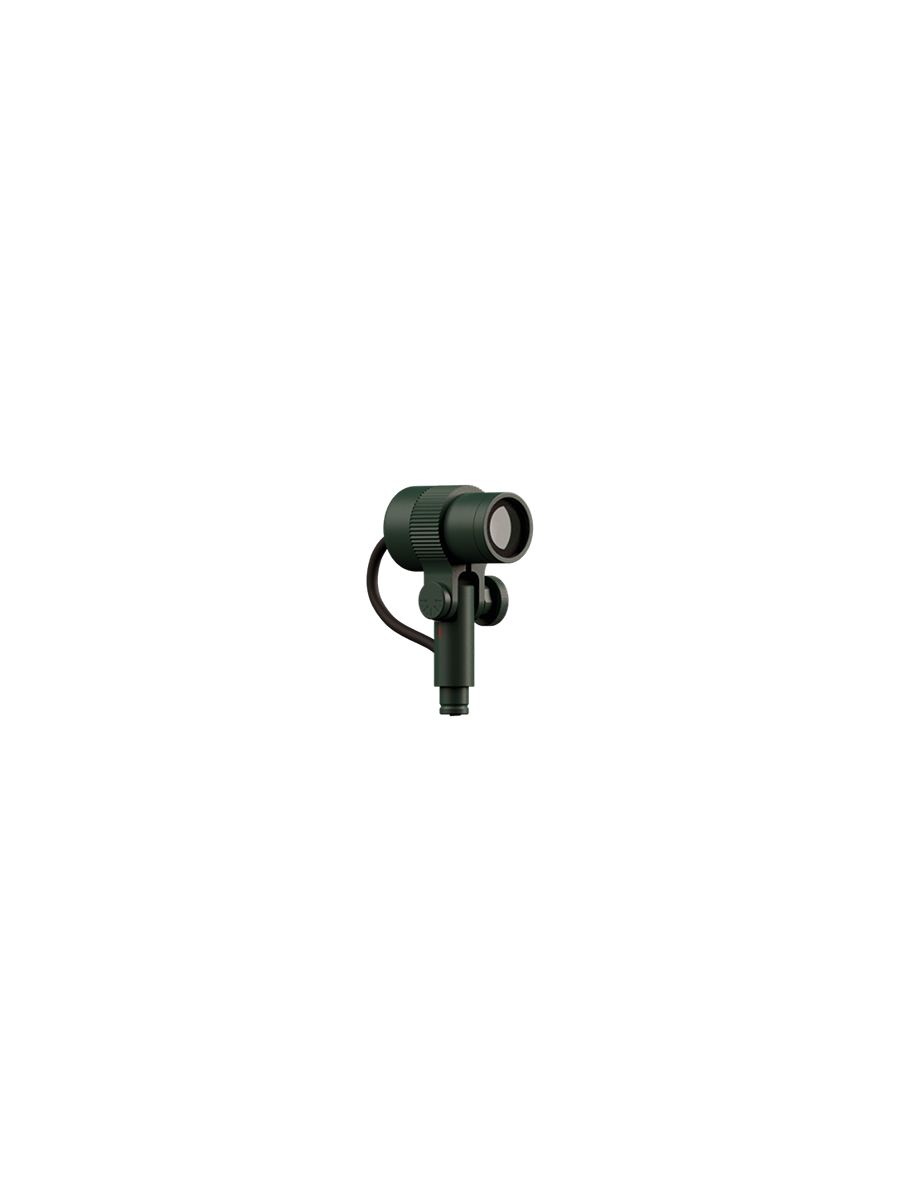

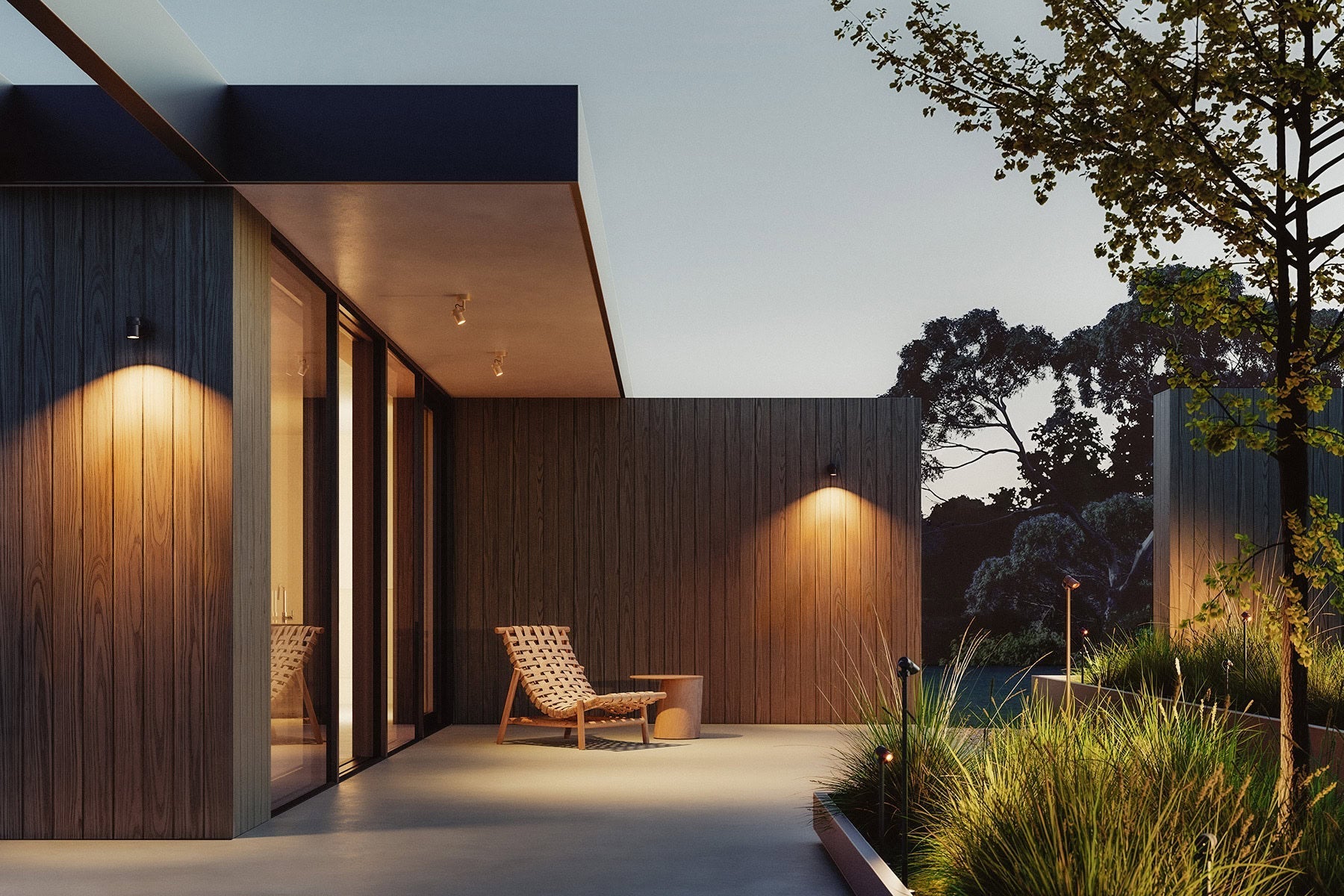

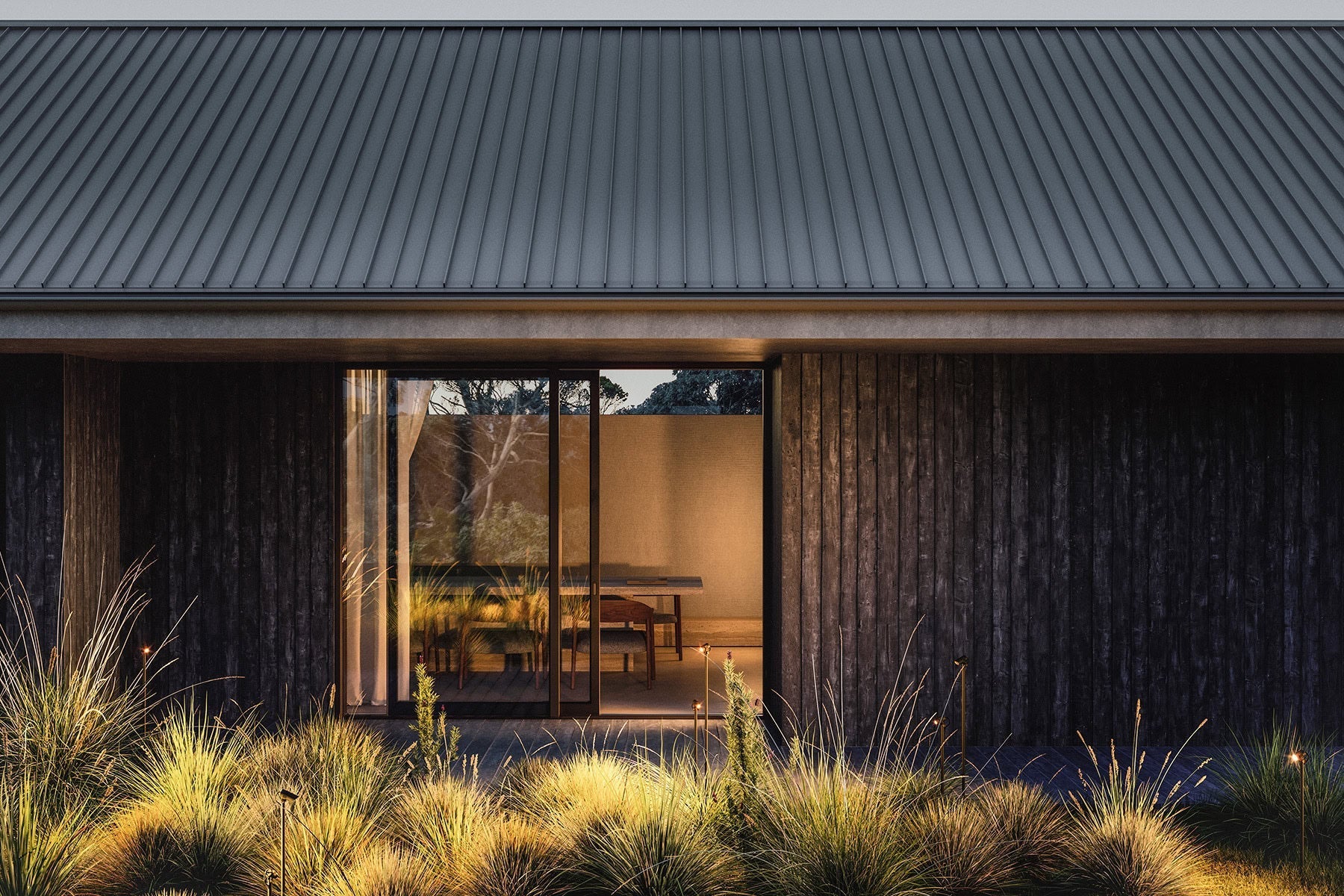

Five finishes – black, anthracite, natural brown, natural green and champagne – ranging from neutral shades to blend into any context to more intense colours to discreetly enhance the design of the projector, make it suitable for various architectural and landscaping applications, offering lighting designers and architects flexible and tailor-made solutions.
